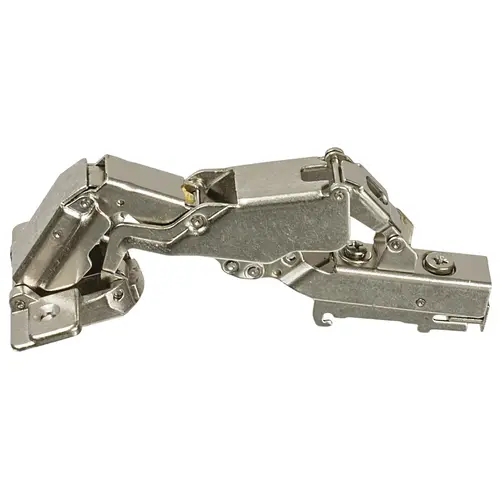

Hafele 315.02.702 Wide Angle Clip-On Hinge, Opening Angle 165 degree , Inset Overlay Soft-Close without Mounting Plate

Item #: 315.02.702 by Hafele

Brand: Hafele

UPC #: 4015643706697

11 reviews
See reviews summary
In Stock

$8.54

9.94 /each
SAVE UP TO 0.85
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 763 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

*Mounting plate is sold separately*

For door thickness min.

9/16"

Door processing for assembly

cup drilling

Distance to cup

≥ 3 – ≤ 7 mm

For min. panel thickness

Side: 5/8"

Crank type

High Cranked

Cup drilling depth

11.5 mm

Adjustment facility

3-dimensional (with appropriate mounting plate)

Door mounting

inset

Model series

Metalla SM 165°

For Door Thickness

14 – 26 mm

Functionality

With automatic closing spring

Opening Angle

165°

Concealed hinge version

inset

Cup drilling diameter

35 mm

Function

With automatic closing spring, With soft closing mechanism

Drilling pattern

45/9.5

Opening angle value list

165°

Drilling pattern type value list

45/9.5

ArticleType

NORMAL

Adjustment facility formula

3-dimensional (with appropriate mounting plate)

Product Overview
Wide Angle Clip-On Hinge, Opening Angle 165 degree, Inset Overlay Soft-Close Optional Accessories: P-00899001;P-00899002;P-00899006
