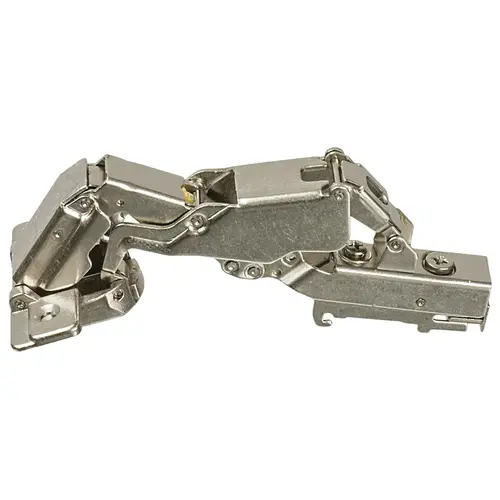

Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed as a high cranked concealed hinge for inset door mounting in cabinet and furniture applications.
- Features a 165 degree opening angle for wide access and a 35 mm cup drilling diameter for standard installation.
- Designed for door thicknesses between 9/16" and 1" with a required cup drilling depth of 7/16".
- Includes an automatic closing spring and a soft closing mechanism for consistent door operation.
- Supports 3-dimensional adjustment for precise alignment when paired with a compatible mounting plate.
- Requires a side panel thickness of 5/8" and a distance to cup ranging from 1/8" to 1/4".
- Utilizes a 45/9.5 drilling pattern and is suitable for inset overlay door configurations.
Opening Angle
165°
Functionality
With automatic closing spring
For Door Thickness
14 – 26 mm
Model series
Metalla SM 165°
Door mounting
inset
Adjustment facility
3-dimensional (with appropriate mounting plate)
Cup drilling depth
11.5 mm
Crank type
High Cranked
For min. panel thickness
Side: 5/8"
Distance to cup
≥ 3 – ≤ 7 mm
Door processing for assembly
cup drilling
For door thickness min.
9/16"
Concealed hinge version
inset
Cup drilling diameter
35 mm
Version
With automatic closing spring
Drilling pattern
45/9.5
Function
With automatic closing spring, With soft closing mechanism
Opening angle value list
165°
Drilling pattern type value list
45/9.5
ArticleType
NORMAL
Adjustment facility formula
3-dimensional (with appropriate mounting plate)
Product Overview
