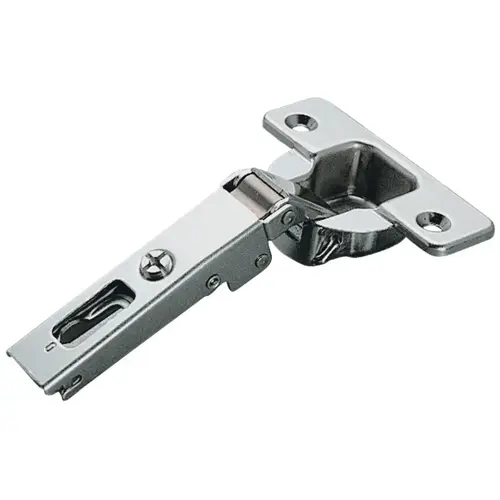

Concealed Hinge, Hafele Duomatic 120 degree , full overlay mounting C2P8A99 For wooden doors, for standard applications with convenient opening angle Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 329.02.506 Concealed Hinge, Hafele Duomatic 120 degree , full overlay mounting C2P8A99 For wooden doors, for standard applications with convenient opening angle Nickel plated

Item #: 329.02.506 by Hafele

See reviewsSee reviews
In Stock

$3.57

/each
SAVE UP TO 0.36

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Color/Finish

Nickel plated

For door thickness min.

5/8"

Door processing for assembly

cup drilling

Side panel thickness min.

5/8"

Area of application

For wood doors

Crank type

Straight

Cup drilling depth

11 mm

Adjustment facility

Side adjustment -1.5 – 4.5 mm, Height adjustment ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm

Door mounting

full overlay

Cup fixing

for screw fixing

Model series

200

For door material

wood

For Door Thickness

16 – 26 mm

Functionality

With automatic closing spring

Opening Angle

120°

Installation

Door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates

Model

C2P8A99

Material

Steel

Cup drilling diameter

35.00 mm

Version

With automatic closing spring

Concealed hinge version

full overlay

Product Overview
Concealed Hinge, Salice 120 degree, full overlay mounting For wooden doors, for standard applications with convenient opening angle
