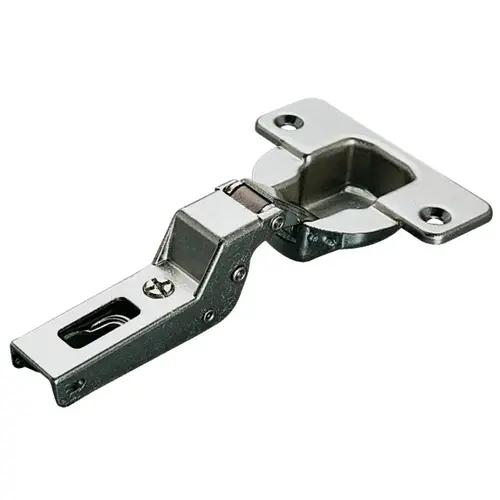

Concealed Thick Door Hinge, Salice, 94 degree Opening Angle, Half Overlay cup fixing: For screw fixing, Self closing, model CFA7G99, nickel-plated Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 329.05.614 Concealed Thick Door Hinge, Salice, 94 degree Opening Angle, Half Overlay cup fixing: For screw fixing, Self closing, model CFA7G99, nickel-plated Nickel plated

Item #: 329.05.614 by Hafele

See reviewsSee reviews
In Stock

$6.10

/each
SAVE UP TO 0.61

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Cup: Steel, Hinge arm: Zinc alloy

Model

CFA7G99

Installation

Door on cabinet with slide-on system A or quick fixing system SM

Opening Angle

94°

Functionality

Without spring

For Door Thickness

20 – 40 mm

For door material

wood

Model series

Duomatic

Cup fixing

for screw fixing

Door mounting

Half overlay mounting/twin mounting

Adjustment facility

Side adjustment -0.5 – 5.5 mm, Height adjustment ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM quick fixing mounting plates from -0.5 to +2.8 mm

Cup drilling depth

13 mm

Crank type

Straight

Area of application

For wood doors

Drilling pattern

52/7.5

Door processing for assembly

cup drilling

For door thickness min.

Up to 1 9/16"

Color/Finish

Nickel plated

Cup drilling diameter

40 mm

Concealed hinge version

Half overlay mounting/twin mounting

Version

With spring

Product Overview
Concealed Thick Door Hinge, Salice, 94° Opening Angle, Half Overlay cup fixing: For screw fixing, Self closing, model CFA7G99, nickel-plated
