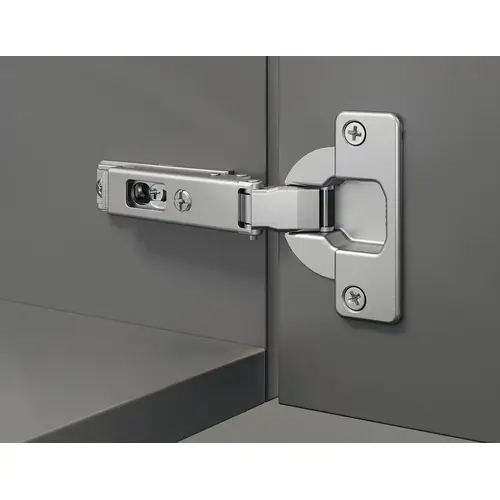

Hafele 329.05.657 Concealed Thick Door Hinge, Salice 200 Series, 94 degree Opening Angle, Full Overlay Without spring Empty cup fixing: For screw fixing nickel plated

Item #: 329.05.657 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$11.55

/each
SAVE UP TO 1.16
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • For door thickness: 19 38 mm (3/4" 1 1/2")
  • Tab: 3 14 mm (1/8" 9/16")

Lock Function

Without spring

Material

Cup: Steel, Hinge arm: Zinc alloy

Installation

Door on cabinet with slide-on system A or quick fixing system SM

Opening Angle

94°

Model Number

Empty

For door material

wood

Adjustment facility

Side adjustment facility 5.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM quick fixing mounting plates from -0.5 to +2.8 mm

Cup drilling diameter

40.00 mm

Cup drilling depth

13.00 mm

Crank type

Straight

Area of application

For wood doors

Drilling pattern

52/7.5

Door processing for assembly

with cup drilling

Concealed hinge version

full overlay

Color/Finish

Nickel plated

Function

With soft closing mechanism

Cup fixing

for screw fixing

Version

Soft close - or Silentia+

Product Overview
Concealed Thick Door Hinge, Salice 200 Series, 94 degree Opening Angle, Full Overlay Without spring Empty cup fixing: For screw fixing
