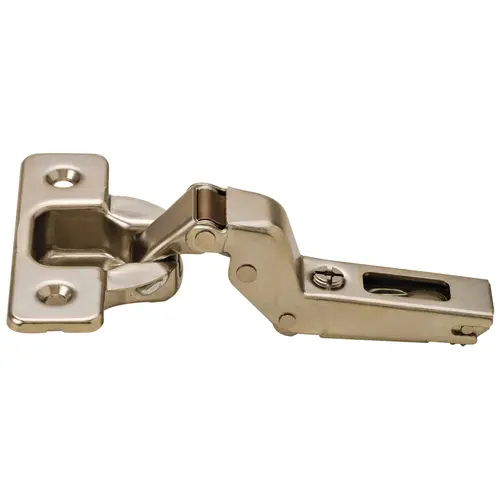

Concealed Hinge, Salice 200 Series/700 Series, 110 degree Opening Angle, Inset Overlay for screw fixing from interior width 70 mm, Self Close, Screw Mounting, Model C2P6P99 Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 329.17.520Click To Copy Concealed Hinge, Salice 200 Series/700 Series, 110 degree Opening Angle, Inset Overlay for screw fixing from interior width 70 mm, Self Close, Screw Mounting, Model C2P6P99 Nickel plated

Item #: 329.17.520 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$2.38

/each
SAVE UP TO 0.24

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 19204 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Steel

Model

C2P6P99

Installation

Door on cabinet with slide-on system A or quick fixing system SM

Opening Angle

110°

Functionality

With automatic closing spring

For Door Thickness

16 – 26 mm

For door material

wood

Model series

Duomatic

Cup fixing

for screw fixing

Door mounting

inset

Adjustment facility

Side adjustment -1.5 – 4.5 mm, Height adjustment ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm

Cup drilling depth

11 mm

Crank type

Cranked

Area of application

For wood doors

Drilling pattern

45/9.5

Door processing for assembly

cup drilling

Color/Finish

Nickel plated

Cup drilling diameter

35 mm

Concealed hinge version

inset

Version

With automatic closing spring

Product Overview
Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, Inset Overlay for screw fixing from interior width 70 mm, Self Close, Screw Mounting, Model C2P6P99
