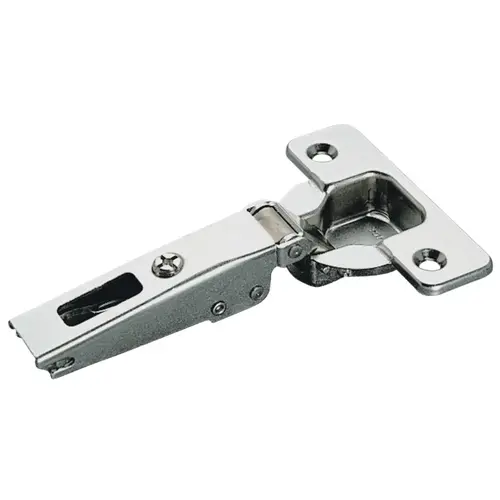

Hafele 329.17.562 Concealed Hinge, Salice 200 Series/700 Series, 110 degree Opening Angle, 1/2" Overlay Self Close, Dowel Mounting, 1/2" Overlay, ModelC2R6D99

Item #: 329.17.562 by Hafele

See reviewsSee reviews
In Stock

$2.34

/each
SAVE UP TO 0.23

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Steel

Model

C2R6D99

Opening Angle

110°

For Door Thickness

16 – 26 mm

Model series

Duomatic

Adjustment facility

Side adjustment -1.5 – 4.5 mm, Height adjustment ±2 mm, Depth adjustment -0.5 – 2.8 mm

Cup drilling depth

11 mm

Crank type

Cranked

Area of application

For wood doors

Door processing for assembly

cup drilling

For door thickness min.

5/8"

Cup drilling diameter

35 mm

Drilling pattern

45/9.5

Product Overview
Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, 1/2" Overlay Self Close, Dowel Mounting, 1/2" Overlay, ModelC2R6D99
