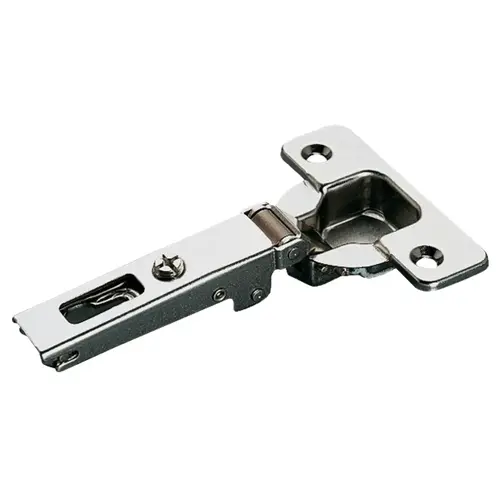

Concealed Hinge, Salice PUSH, 110 degree Opening Angle, Self Opening, Full Overlay for screw fixing Salice, Screw mounting, model C2PPA99 Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 329.17.800 Concealed Hinge, Salice PUSH, 110 degree Opening Angle, Self Opening, Full Overlay for screw fixing Salice, Screw mounting, model C2PPA99 Nickel plated

Item #: 329.17.800 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$7.12

/each
SAVE UP TO 0.71
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2001 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Nearly complete automatic opening of the door

Material

Steel

Model

C2PPA99

Installation

Door on cabinet with slide-on system A or quick fixing system SM

Opening Angle

110°

Functionality

With automatic opening mechanism (Push)

For Door Thickness

16 – 26 mm

For door material

wood

Model series

Push 110°

Cup fixing

for screw fixing

Door mounting

full overlay

Adjustment facility

Side adjustment -1.5 – 4.5 mm, Height adjustment ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm

Cup drilling depth

11 mm

Crank type

Straight

Side panel thickness min.

5/8"

Drilling pattern

45/9.5

Door processing for assembly

cup drilling

For door thickness min.

5/8"

Color/Finish

Nickel plated

Cup drilling diameter

35 mm

Area of application

For handle-free opening

Concealed hinge version

full overlay

Version

With automatic opening mechanism (Push)

Function

With automatic opening mechanism (Push)

Order reference

Drilling pattern 45/9.5 available by request.

RequiredProducts

true

Product Overview
Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Full Overlay for screw fixing Salice, Screw mounting, model C2PPA99
