Features
- Constructed with a nickel plated finish, this institutional hinge cup is designed for use in cabinet and furniture hardware systems.
- Features a 35 mm cup drilling diameter and 13 mm cup drilling depth, suitable for standard cabinet door processing and assembly.
- Compatible with door thicknesses from 13/16" to 21 mm and requires a minimum side panel thickness of 3/4" for installation.
- Utilizes a 45/9.5 drilling pattern and is designed for single cabinets and storage wall applications.
- Offers quick and precise door height adjustment and side adjustment, ensuring the hinge remains attached to the door during use.
- Supports a twin mounted version, allowing two doors to be mounted on a single hinge on a single side panel.
- Includes the hinge cup assembly, while No.6 wood screws for attachment are not included and must be sourced separately.
Color/Finish
Nickel plated
For door thickness min.
13/16"
Door processing for assembly
cup drilling
Drilling pattern
45/9.5
Side panel thickness min.
3/4"
Area of application
For single cabinets and storage walls
Order reference
#6 wood screws for hinge attachment are not included
Cup drilling depth
13 mm
Model series
Aximat 300
For Door Thickness
≤21 mm
Model
Häfele Aximat 300
Cup drilling diameter
35 mm
Drilling pattern type value list
45/9.5
ArticleType
NORMAL
Colour finish refinement
Nickel plated
Product Overview

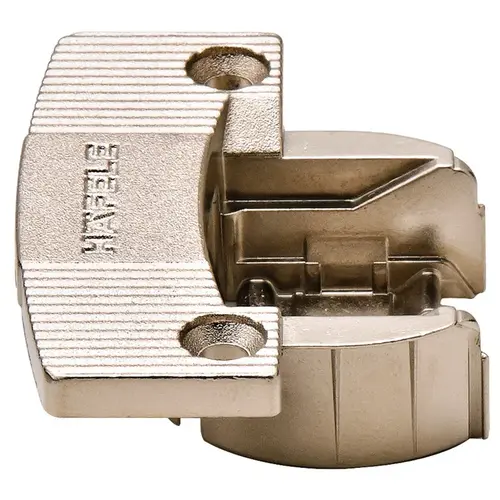

The Single Pivot Institutional Hinge Cup, Aximat 300, Grade 1, Screw Mount Aximat 300, Matt nickel is designed for single cabinets and storage walls. This hinge features a cup drilling diameter of 35 mm and a cup drilling depth of 13 mm, requiring cup drilling for door assembly. It is suitable for door thicknesses ranging from 13/16" up to 21 mm. The hinge is designed for a side panel thickness of at least 3/4". It utilizes a 45/9.5 drilling pattern for installation. The hinge allows for quick and precise door height adjustment and side adjustment, with the hinge remaining attached to the door. A twin mounted version is available, allowing two doors to be mounted on a single hinge on a single side panel. The hinge is finished in nickel plated. Please note that No.6 wood screws for hinge attachment are not included.
