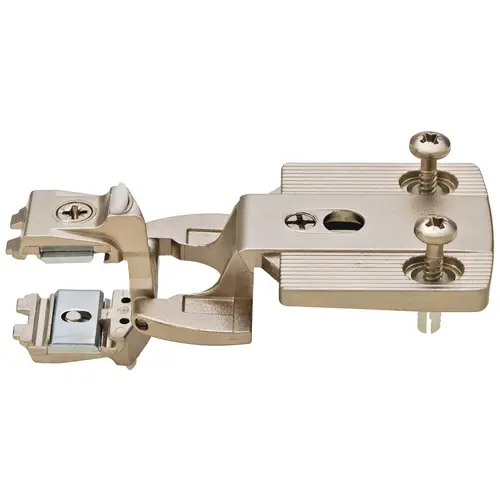

Hafele 344.06.902 Single Pivot Institutional Hinge Arm, Aximat 300, Grade 1, with Expanding Dowels 180 degree Aximat 300, Matt nickel, twin overlay, 180 degree opening angle matt, Nickel plated

Item #: 344.06.902 by Hafele

See reviewsSee reviews
See reviews summary

$12.96

/each
SAVE UP TO 1.30
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment
  • Hinge cup component available in screw-mount or dowel-mount
  • Arm and cup clip-together, no tools required
  • Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel.
  • Twin-mounted version requires 2 cups.
  • Recommended number of hinges: Door widths up to 600 mm (23 5/8"), Door width should not exceed height.

Installation

With pre-mounted expanding dowels for 5mm holes

Color/Finish

matt, Nickel plated

Opening Angle

180°

Order reference

#6 wood screws for hinge attachment are not included

Side panel thickness

19 mm

Area of application

For single cabinets and storage walls

Cup drilling depth

13 mm

Model series

300

Door processing for assembly

without

Material

Zinc Alloy

Cup drilling diameter

35 mm

Product Overview
Single Pivot Institutional Hinge Arm, Aximat 300, Grade 1, with Expanding Dowels 180° Aximat 300, Matt nickel, twin overlay, 180° opening angle Optional Accessories: P-00898688;P-00898689
