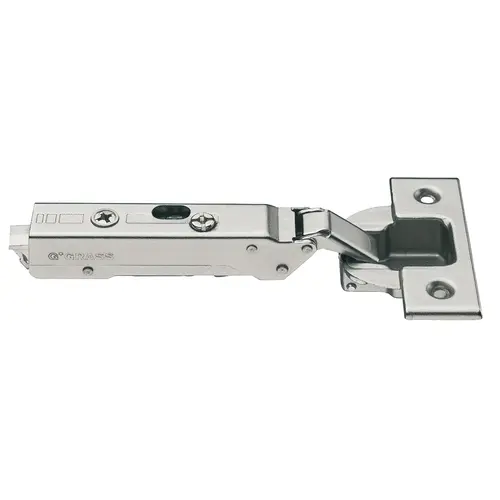

Concealed Hinge, Grass Tiomos 110 degree , Full Overlay Mounting for screw fixing 45/9.5 Without soft closing mechanism, With automatic opening mechanism (Push) For standard applications, Cup fixing: For screw fixing, without soft closing mechanism Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 348.31.101 Concealed Hinge, Grass Tiomos 110 degree , Full Overlay Mounting for screw fixing 45/9.5 Without soft closing mechanism, With automatic opening mechanism (Push) For standard applications, Cup fixing: For screw fixing, without soft closing mechanism Nickel plated

Item #: 348.31.101 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$13.45

/each
SAVE UP TO 1.34
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 75 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • with or without integrated, 3-way adjustable soft closing mechanism in hinge arm (optional)
  • with opening mechanism for convenient opening with front panels without handles
  • Optimum gap dimensions with door thickness of up to 24 mm
  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

Material

Steel

Model

Tiomos

Installation

Door on cabinet without tools with clip system

Opening Angle

110°

Functionality

Without soft closing mechanism, With automatic opening mechanism (Push)

For Door Thickness

16 – 24 mm

For door material

wood

Model series

Tiomos 110°

Cup fixing

for screw fixing

Door mounting

full overlay

Adjustment facility

Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate

Cup drilling depth

12.6 mm

Crank type

Cranked

Area of application

for standard applications

Drilling pattern

45/9.5

Door processing for assembly

cup drilling

Color/Finish

Nickel plated

Concealed hinge version

full overlay

Cup drilling diameter

35 mm

Version

Without soft closing mechanism, With automatic opening mechanism (Push)

Order reference

Please order Grass Tipmatic separately for hinges with opening mechanism.

Product Overview
Concealed Hinge, Grass Tiomos 110°, Full Overlay Mounting for screw fixing 45/9.5 Without soft closing mechanism, With automatic opening mechanism (Push) For standard applications, Cup fixing: For screw fixing, without soft closing mechanism
