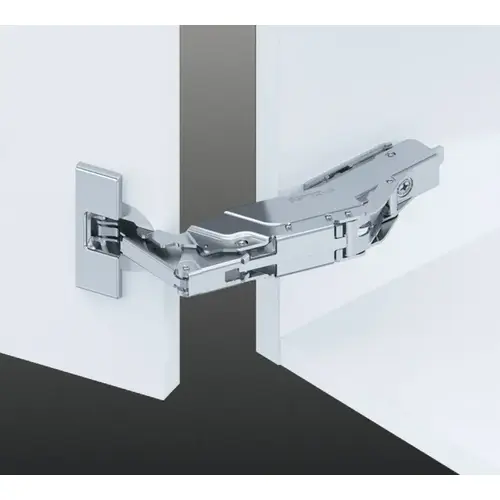

Concealed Hinge, Grass TIOMOS, 155 degree Opening Angle, Full Overlay 45/9.5 Without soft closing mechanism Self close, screw-on, model F045138499217 Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 348.32.600 Concealed Hinge, Grass TIOMOS, 155 degree Opening Angle, Full Overlay 45/9.5 Without soft closing mechanism Self close, screw-on, model F045138499217 Nickel plated

Item #: 348.32.600 by Hafele

See reviewsSee reviews
In Stock

$12.86

/each
SAVE UP TO 1.29

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)
  • No offset, for use with internal pull outs or extending trays
  • Low cup depth 10 mm
  • Surrounding mitred mounting possible
  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

Material

Zinc Alloy

Model

F045138499217

Opening Angle

155°

Functionality

Without soft closing mechanism

Drilling Depth

3/8"

For Door Thickness

29 – 32 mm

Model series

Tiomos 160°

Cup fixing

for screw fixing

Door mounting

full overlay plus

Cup drilling depth

10 mm

Crank type

Straight

Area of application

For large door overlay up to 24 mm

Door processing for assembly

cup drilling

For door thickness min.

Max. 1 1/4"#For door thickness over 29mm, a trial fitting is recommended

Cup drilling diameter

35 mm

Concealed hinge version

full overlay plus

Version

Without soft closing mechanism

Drilling pattern

45/9.5

Color/Finish

Nickel plated

Product Overview
Concealed Hinge, Grass TIOMOS, 155 degree Opening Angle, Full Overlay 45/9.5 Without soft closing mechanism Self close, screw-on, model F045138499217
