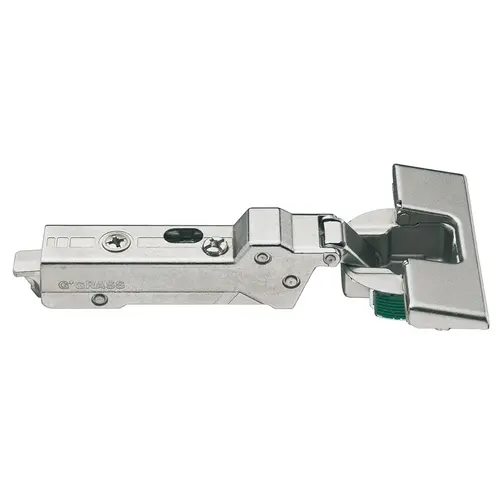

Hafele 348.34.802 Concealed Hinge, Grass TIOMOS, 94 degree Opening Angle, Half Overlay for screw fixing Empty F028138569228 for thick doors and profile doors up to 36 mm, Screw-on, soft-close, model F028138569228 nickel plated

Item #: 348.34.802 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$17.16

/each
SAVE UP TO 1.72
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 101 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Lock Function

Empty

Material

Cup: Steel, Hinge arm: Zinc alloy

Opening Angle

95°

Model Number

F028138569228

For door material

wood

Cup fixing

for screw fixing

Adjustment facility

Side adjustment facility 2 mm, Height adjustment facility -2.5 – 2.5 mm, Depth adjustment facility -2 – 3 mm, Height adjustment depending on mounting plate

Cup drilling diameter

35.00 mm

Cup drilling depth

12.60 mm

Crank type

Cranked

Area of application

For thick doors

Door processing for assembly

with cup drilling

Concealed hinge version

Half overlay mounting/twin mounting

Color/Finish

Nickel plated

Product Overview
Concealed Hinge, Grass TIOMOS, 94 degree Opening Angle, Half Overlay for screw fixing Empty F028138569228 for thick doors and profile doors up to 36 mm, Screw-on, soft-close, model F028138569228 Optional Accessories: P-00898884;P-00899036;P-00899124
