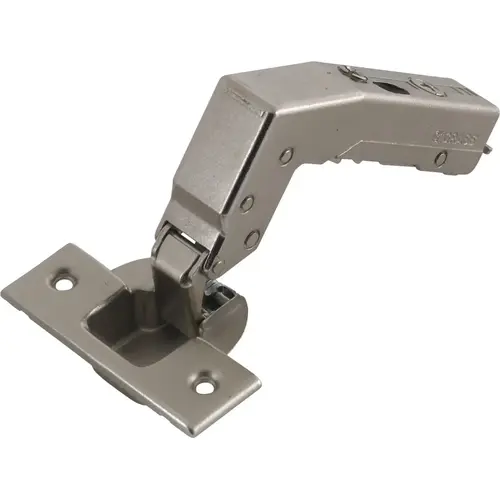

Hafele 348.37.830 Concealed Blind Corner Hinge, Grass TIOMOS, 110 degree Opening Angle, Overlay Mounting F028138545223 Screw fixing cup,, Soft close, press-fit, model F028138545223

Item #: 348.37.830 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$24.70

/each
SAVE UP TO 2.47
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 43 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height 3 mm (1/8”).

Material

Cup: Steel, Hinge arm: Zinc alloy

Model

F028138545223

Opening Angle

110°

Functionality

With soft closing mechanism

For Door Thickness

16 – 24 mm

Model series

Tiomos

Cup fixing

without tools

Door mounting

blind corner application

Adjustment facility

Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm

Cup drilling depth

12.6 mm

Crank type

Straight

Distance to cup

≥ 3 – ≤ 7 mm

Area of application

For blind corner applications

Door processing for assembly

cup drilling

For door thickness min.

Max: (61/64") - Anything thicker, a trial mounting is recommended

Function

With soft closing mechanism

Cup drilling diameter

35.00 mm

Drilling pattern

45/9.5

Concealed hinge version

blind corner application

RequiredProducts

true

Product Overview
Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting F028138545223 Screw fixing cup,, Soft close, press-fit, model F028138545223 Required Products: 348.38.511;348.38.512;348.38.513 Optional Accessories: 348.40.010;P-00899124
