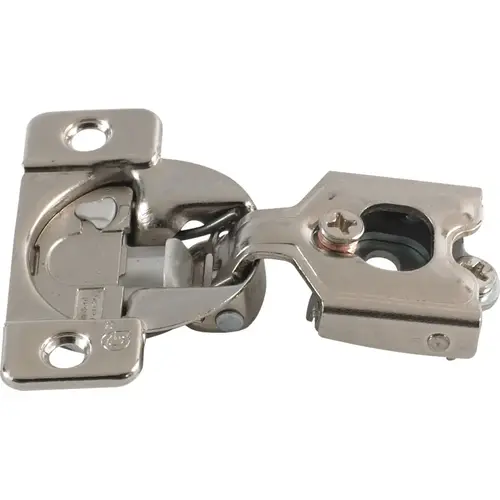

Concealed Face Frame Hinge, Grass TEC Wrap Around, 108 degree Opening Angle, Soft-Close Door: 13/64"; Arm: 7/16" 02670A-15 7/16" Overlay, Screw-on; Model 02670A-15

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 348.90.011Click To Copy Concealed Face Frame Hinge, Grass TEC Wrap Around, 108 degree Opening Angle, Soft-Close Door: 13/64"; Arm: 7/16" 02670A-15 7/16" Overlay, Screw-on; Model 02670A-15

Item #: 348.90.011 by Hafele

See reviewsSee reviews
In Stock

$6.44

/each
SAVE UP TO 0.64

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 141 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Flat head screw is for hinge cup; Pan head screw is for base plate.

Material

Steel

Clearance

Door: 13/64"; Arm: 7/16"

Model

02670A-15

Opening Angle

108°

Drilling Depth

Cup drilling depth: 7/16"

For Door Thickness

≤19 mm

Model series

Grass TEC

Adjustment facility

Side adjustment ±1.5 mm, Height adjustment ±2 mm, Depth adjustment -5 – 2.5 mm

Installation height

1/4" – 1"

Cup drilling depth

10.7 mm

Door processing for assembly

cup drilling

Drilling pattern

45/9.5

Product Overview
Concealed Face Frame Hinge, Grass TEC Wrap Around, 108° Opening Angle, Soft-Close Door: 13/64"; Arm: 7/16" 02670A-15 7/16" Overlay, Screw-on; Model 02670A-15
