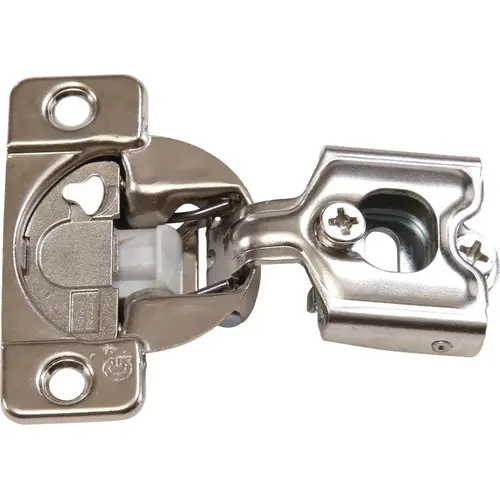

Concealed Face Frame Hinge, Grass TEC Wrap Around, 108 degree Opening Angle, Soft-Close Door: 1/8"; Arm: 7/16" 04431A-15 1/2" Overlay, Screw-on; Model 04431A-15

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 348.90.012 Concealed Face Frame Hinge, Grass TEC Wrap Around, 108 degree Opening Angle, Soft-Close Door: 1/8"; Arm: 7/16" 04431A-15 1/2" Overlay, Screw-on; Model 04431A-15

Item #: 348.90.012 by Hafele

See reviewsSee reviews
In Stock

$6.47

/each
SAVE UP TO 0.65

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Flat head screw is for hinge cup; Pan head screw is for base plate.

Material

Steel

Clearance

Door: 1/8"; Arm: 7/16"

Model

04431A-15

Opening Angle

108°

Drilling Depth

Cup drilling depth: 7/16"

For Door Thickness

≤19 mm

Model series

Grass TEC

Adjustment facility

Side adjustment ±1.5 mm, Height adjustment ±2 mm, Depth adjustment -5 – 2.5 mm

Installation height

1/4" – 1"

Cup drilling depth

10.7 mm

Door processing for assembly

cup drilling

Product Overview
Concealed Face Frame Hinge, Grass TEC Wrap Around, 108° Opening Angle, Soft-Close Door: 1/8"; Arm: 7/16" 04431A-15 1/2" Overlay, Screw-on; Model 04431A-15
