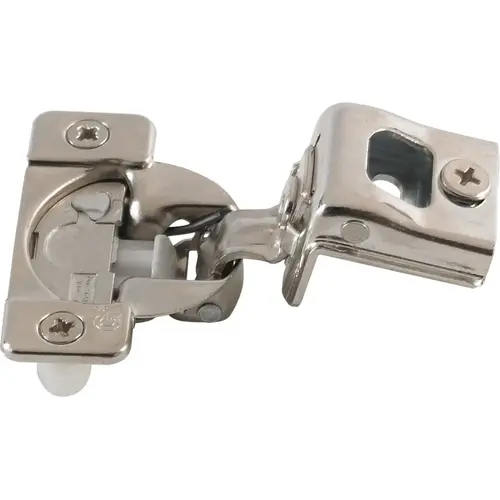

Concealed Face Frame Hinge, Grass TEC Wrap Around, 108 degree Opening Angle, Soft-Close Arm: 13/32" 02910A-15 1-1/4" Overlay, Press-fit; Model 02910A-15

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 348.90.025 Concealed Face Frame Hinge, Grass TEC Wrap Around, 108 degree Opening Angle, Soft-Close Arm: 13/32" 02910A-15 1-1/4" Overlay, Press-fit; Model 02910A-15

Item #: 348.90.025 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$6.92

/each
SAVE UP TO 0.69
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 338 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Flat head screw is for hinge cup; Pan head screw is for base plate.

Material

Steel

Clearance

Arm: 13/32"

Model

02910A-15

Opening Angle

108°

Drilling Depth

Cup drilling depth: 7/16"

For Door Thickness

≤19 mm

Model series

Grass TEC

Adjustment facility

Side adjustment ±1.5 mm, Height adjustment ±2 mm, Depth adjustment -5 – 2.5 mm

Installation height

1/4" – 1"

Cup drilling depth

10.7 mm

Door processing for assembly

cup drilling

Drilling pattern

45/9.5

Product Overview
Concealed Face Frame Hinge, Grass TEC Wrap Around, 108° Opening Angle, Soft-Close Arm: 13/32" 02910A-15 1-1/4" Overlay, Press-fit; Model 02910A-15
