Double Door Lift-Up Fitting, Hafele Free fold short 910 - 970 mm 8.9 - 16.8 kg J6fs For two-piece flaps with division 1:1 made from wood or with aluminum frame, Model: J6fs, Gray Fitting: Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

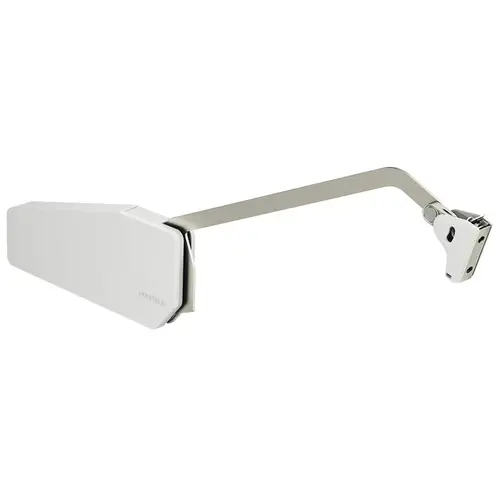

Hafele 372.38.585 Double Door Lift-Up Fitting, Hafele Free fold short 910 - 970 mm 8.9 - 16.8 kg J6fs For two-piece flaps with division 1:1 made from wood or with aluminum frame, Model: J6fs, Gray Fitting: Nickel plated

Item #: 372.38.585 by Hafele

See reviewsSee reviews

$115.99

/kit
SAVE UP TO 11.60

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Even high front panels can be folded up in a space-saving way
  • Modern design thanks to clear lines
  • Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel
  • Efficient and time-saving processing thanks to pins, pre-mounted Euro screws and quick fixing system for the front panel
  • Even high front panels can be lifted up in a space-saving way
  • Modern design with clear-cut contours
  • Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for ease in operation
  • Time-saving assembly provided by tabs, pre-mounted Euro screws and clip mounting of front panel
  • Shorter housing depth is beneficial in inset applications

Supplied with

Concealed hinges for mounting the door to the cabinet, connecting hinges and adapters for narrow aluminum frames (if applicable) must be ordered separately. The specified models apply to common door heights and weights and taller front panels with lower door weights can also be implemented in individual cases.

For lid weight

8.9 – 16.8 kg

Order reference

Concealed hinges for mounting the flap to the cabinet, connecting hinges and adapters for narrow aluminium frames (if applicable) must be ordered separately.

For internal cabinet depth min.

10 5/8"

Area of application

For 2-piece or aluminum frame doors of equal size

Lid Material

Wood, Aluminum frame

For cabinet height

910 – 970 mm

Door weight min.

19.6 - 37 lbs

Model series

Free fold short

Set Type

Complete set

Material

Fitting: Plastic, steel cover cap: Plastic

Model

J6fs

For lid height

Adjustment facility

Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge) Holding power/centre pull (via fitting)

Cabinet Depth

Min. 10 5/8"

Color/Finish

Fitting: Nickel plated

Cover Color

Gray

Flap Type

two-piece with division 1:1
