Features
- Constructed from zinc alloy with a nickel plated finish, providing a functional component for cabinet and furniture hardware.
- Supports an opening angle of 75 to 110 degrees for one-piece flaps, suitable for wood or aluminum frame doors.
- Designed for right and left hand use with a minimum cabinet height of 255 mm and a minimum cabinet width of 45 mm.
- Features a wear-resistant friction coupling with a large adjusting range for consistent operation in cabinet applications.
- Includes height, side, tilt, and pull adjustment facilities to allow for precise alignment of the flap or lid.
- Rated for a maximum lid weight of 9 kg, with a requirement to use two fittings when configured as a flap stay.
- Supplied as a complete set including 1 lid stay, 1 cabinet mounting bracket, and 1 screw-on bracket for the flap.
Material
Zinc Alloy
Installation
Wood screws
For lid height
Model series
Duo standard
Adjustment facility
Height ±2 mm side +3/-1 mm tilt ±1.5 mm and pull adjustment facility
Supplied with
1 Lid stay, 1 Mounting bracket for cabinet 1 Screw-on bracket for flap
For cabinet height
≥255 mm
For cabinet width
≥45 mm
Area of application
For doors made of wood or with aluminum frame
Mounting
right and left hand use
Color/Finish
Nickel plated
Edge distance
37 mm
Lid Material
Wood, Aluminum frame
Flap Type
one-piece
Opening Angle
75 – 110 °
For lid weight
≤9 kg, note sample measurements table
Version
Complete set
Installation reference
Always use two fittings when used as flap stay and include weight of handles
Important
Mounting location dimensions are critical for this fitting to perform properly
Installation depth
135 mm
Edge distance inch lang dep
1 7/16"
For lid weight formula
≤9 kg, note sample measurements table and cabinet height
ArticleType
NORMAL
Adjustment facility multi-line text lang dep
holding power
Mounting flap fittings
right and left hand use
Installation note
Always use two fittings when used as flap stay and include weight of handles
Colour finish multi-line
nickel plated
For cabinet height formula
200–500 mm
Product Overview

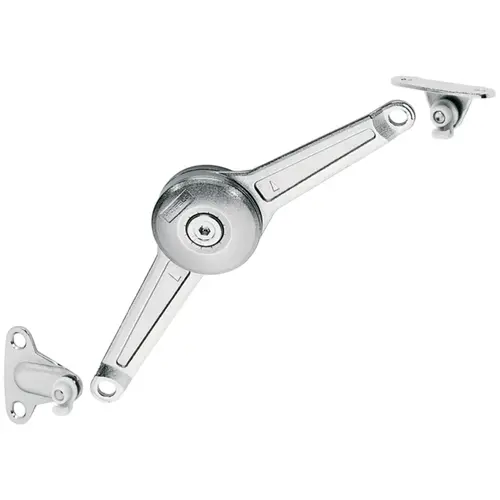

The Lid Stay/Flap Stay, Hafele Duo Standard is a versatile opening mechanism for one-piece flaps, suitable for doors made of wood or with aluminum frames. This fitting is designed for right and left hand use and requires a minimum cabinet height of 255 mm and a minimum cabinet width of 45 mm. Constructed from zinc alloy with a nickel plated finish, it features a wear-resistant friction coupling with a large adjusting range. The mechanism allows for height adjustment of 2 mm, side adjustment of 31 mm, tilt adjustment of 1.5 mm, and includes a pull adjustment facility. It supports an opening angle of 75 to 110 degrees and is rated for a lid weight of up to 9 kg. The set includes 1 lid stay, 1 mounting bracket for the cabinet, and 1 screw-on bracket for the flap, with installation via wood screws at an edge distance of 37 mm. When used as a flap stay, two fittings are required, and the weight of handles must be included in the calculation. Mounting location dimensions are critical for this fitting to perform properly.
