30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
For Door Thickness
16 – 19 mm

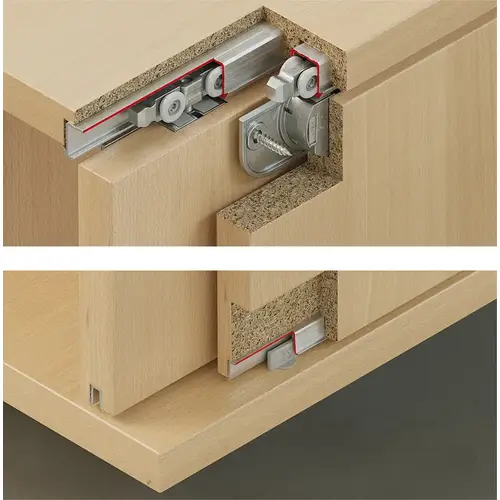

Installation
Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)
Supplied with
4 running gears (2 with soft and self closing mechanism) 4 door stoppers (2 with clip-in door stopper, 2 for soft and self closing mechanism) 1 door follower 2 guides 1 mounting aid
Door adjustment via
adjusting wheel
Order reference
Please order running and guide tracks separately. For cabinets with 3 doors, please order the following sets: 1 set for 1 door and 1 set for 2 doors.
For door thickness max.
3/4"
Number of doors per system max.
1 to 3
Number of Doors
2
For door material
wood
Cabinet version
with thin cabinet top panels
Material/finish
Housing: Zinc alloy Running gear: Zinc alloy Guide: Plastic Rollers: Plastic Axis: Steel
For door thickness min.
5/8"
Running gear guided by
Ball bearing
Area of application
For thin cabinet top panels
Door width max.
Max: 4' 1 3/16"
Soft closing mechanism
with soft and self closing mechanism on one side
Type of opening
linear
Length
2' 1 19/32"
Model series
F-Line21
Door weight max.
44 lbs.
Running position
Top
Number of rollers
4
Door stopper
Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track
For Door Width
≥370 mm
For door weight
21 – 40 kg
Adjustment facility
Height ±2 mm on running gear using adjusting wheel
