Hafele 405.02.410 Sliding Door Hardware, Hawa Clipo 36 GPK IF, set with top glass retaining profile and visible bottom guide with zero clearance For 1 glass door; max door weight: 79 lbs (36 kg), GPK Running gear: Zinc alloy Suspension: Zinc alloy Guide: Zinc alloy Guide: Plastic Rollers: Plastic Axis: Steel
Item #: 405.02.410 by Hafele
Brand: Hafele
UPC #: 4015643185119
See reviewsSee reviews
In Stock
$208.64
270.76 /kitQUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
Version: with top glass retaining profile and visible bottom guide with zero clearance
with top and bottom glass retaining profile and concealed bottom guide with zero clearance
with top glass retaining profile and visible bottom guide with zero clearance
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Running gear includes four plastic rollers
- Optional soft close mechanism can be inconspicuously integrated into the track so its is not visible and is protected from damage
- No guide rails in the bottom of the cabinet

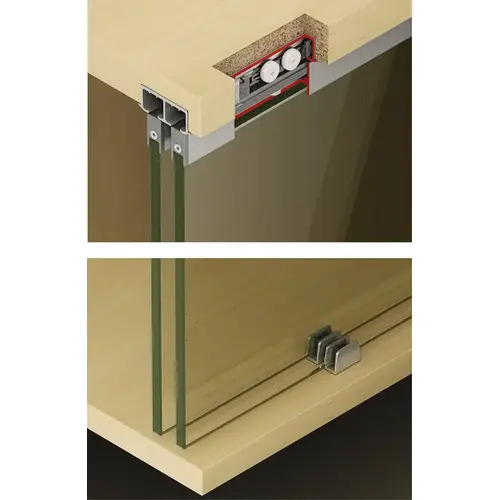

- GPK Version: Glass fixing profile is on the top of the door, floor guide located at the bottom
- GPPK Version: Glass fixing profile is on the top and bottom of the door, floor guide is concealed within the profile
For Glass Thickness
6–8 mm
For Door Height
≤2,000 mm
For Door Width
≤1,000 mm
Cabinet version
with sliding doors without glass drilling
Number of doors per system max.
1
Model series
Clipo
Running position
Top
Number of rollers
4
Soft closing mechanism
with clip-in door stopper
Adjustment facility
Height adjustment: ±2 mm
Supplied with
2 Running gears 2 track stoppers 2 glass centering pieces 1 guide
For door weight
≤36 kg
Order reference
Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately. Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.
Set
Set without tracks
Version
with top glass retaining profile and visible bottom guide with zero clearance
Area of application
For sliding doors without glass drillings
Running gear guided by
Friction bearing
Door stopper
Top clip-in door stopper, for sliding into single or double top running track
Material/finish
Running gear: Zinc alloy Suspension: Zinc alloy Guide: Zinc alloy Guide: Plastic Rollers: Plastic Axis: Steel
Door processing
Without glass preparation
Type of opening
linear
Number of Doors
1
RequiredProducts
true
Bearing running gear
Friction bearing
For door wing width formula
≤1,000 mm
Door wing stop cs
Top clip-in door stopper, for sliding into single or double top running track
For glass thickness sliding tracks
6–8 mm
ArticleType
NORMAL
For door wing weight formula
≤36 kg
Number of door wings
1
Adjustment facility formula
Height adjustment ±2 mm
Cabinet design
with sliding doors without glass drilling
Soft closing mechanism cs
without soft and self closing mechanism, with clip-in door stopper
Type of running
Top
For door wing height formula
≤2,000 mm
Sliding complete set
Set without tracks
Product Overview
Sliding Door Hardware, Hawa Clipo 36 GPK IF, set with top glass retaining profile and visible bottom guide with zero clearance For 1 glass door; max door weight: 79 lbs (36 kg), GPK
Required Products: 405.00.622;405.00.623;405.00.632;405.02.622;405.02.623;405.03.202;405.03.203
Optional Accessories: P-00875173;P-00875168
