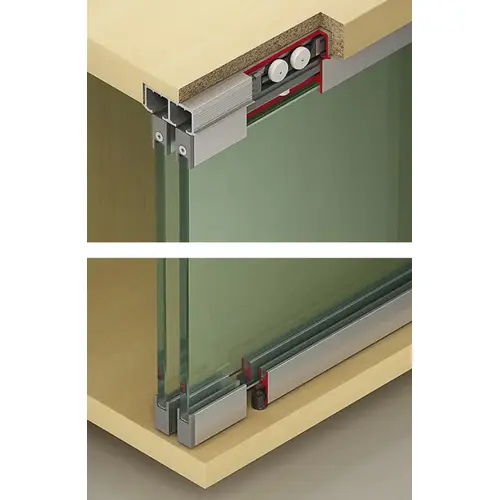

Hafele 405.02.411 Sliding Door Hardware, Hawa Clipo 36 GPPK IF, set with top and bottom glass retaining profile and concealed bottom guide with zero clearance For 1 glass door; max door weight: 79 lbs (36 kg), GPPK Running gear: Zinc alloy Suspension: Zinc alloy Guide: Zinc alloy Guide: Plastic Rollers: Plastic Axis: Steel
Item #: 405.02.411 by Hafele
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Running gear includes four plastic rollers
- Optional soft close mechanism can be inconspicuously integrated into the track so its is not visible and is protected from damage
- No guide rails in the bottom of the cabinet
- GPK Version: Glass fixing profile is on the top of the door, floor guide located at the bottom
- GPPK Version: Glass fixing profile is on the top and bottom of the door, floor guide is concealed within the profile
Adjustment facility
Height adjustment: ±2 mm
For door weight
≤36 kg
For Door Width
≤1,000 mm
Door stopper
Top clip-in door stopper, for sliding into single or double top running track
Number of rollers
4
Set
Set without tracks
Running position
Top
Model series
Clipo
Door processing
Without glass preparation
Type of opening
linear
Soft closing mechanism
with clip-in door stopper
Area of application
For sliding doors without glass drillings
Running gear guided by
Friction bearing
Material/finish
Running gear: Zinc alloy Suspension: Zinc alloy Guide: Zinc alloy Guide: Plastic Rollers: Plastic Axis: Steel
Version
with top and bottom glass retaining profile and concealed bottom guide with zero clearance
For Door Height
≤2,000 mm
For Glass Thickness
6–8 mm
Cabinet version
with sliding doors without glass drilling
Number of Doors
1
Number of doors per system max.
1
Order reference
Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately. Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.
Supplied with
2 Running gears 2 track stoppers 8 glass centering pieces 1 guide 3 cover caps
RequiredProducts
true
Product Overview
Sliding Door Hardware, Hawa Clipo 36 GPPK IF, set with top and bottom glass retaining profile and concealed bottom guide with zero clearance For 1 glass door; max door weight: 79 lbs (36 kg), GPPK
Required Products: 405.00.622;405.00.623;405.00.632;405.02.622;405.02.623;405.03.202;405.03.203
Optional Accessories: P-00875173;P-00875168
