30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed with a steel threaded bar, zinc alloy tensioner, aluminium trim strip, and plastic cover caps and clip-on profile.
- Designed for door heights up to 2,400 mm and door thicknesses of 16 mm or greater, with a cover profile length of 2,000 mm.

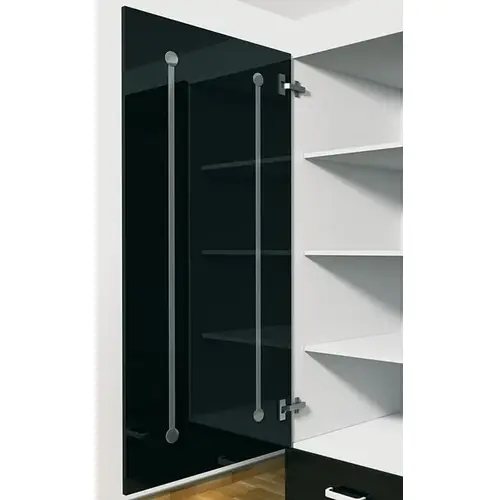

- Suitable for both hinged and sliding wooden doors, providing structural support to prevent or correct door warping.
- Features an adjustment facility on a hexagonal nut using an SW 8 open-ended spanner for precise alignment.
- Includes a set of 2 straightening fittings for comprehensive door support and maintenance.
- Designed for press fitting installation, ensuring a stable and integrated fit within the door structure.
- Finished with an anodized cover profile and trim strip, complemented by aluminium effect lacquered cover caps.
Material
Threaded bar: Steel, tensioner: Zinc alloy, trim strip: Aluminium, cover caps and clip-on profile: Plastic
Installation
For press fitting
For Door Height
≤2,400 mm
For Door Thickness
≥16 mm
Adjustment facility
on hexagonal nut with SW 8 open-ended spanner
Supplied with
1 set consists of 2 straightening fittings
Distance to cup
≤ 1,986 mm
Area of application
For hinged doors and sliding doors; prevents doors warping in either direction or straightens doors which have become warped
Color/Finish
Cover profile: Anodized, Trim strip: Anodized, cover caps: Aluminium effect lacquered
ArticleStatus
OK
Colour finish refinement
Trim strip: Anodized, cover caps: Aluminum effect lacquered
For door wing height formula
≤2,400 mm
Adjustment facility multi-line text lang dep
on hexagonal nut with SW 8 open-ended spanner
ArticleType
NORMAL
For door wing thickness formula
≥16 mm
Cup distance formula
≤1,986 mm
Product Overview
The Straightening fitting, Hafele Planomix, set, for wooden doors 1,986 mm 2,400 mm For hinged and sliding doors, length cover profile: 2000mm, door height: 2400mm Cover profile: Anodized, Trim strip: Anodized, cover caps: Aluminium effect lacquered is designed to prevent warping or straighten existing warped wooden doors. This set is suitable for both hinged and sliding door applications. The system features a threaded bar made of steel, a tensioner made of zinc alloy, a trim strip made of aluminium, and cover caps and a clip-on profile made of plastic. It is designed for doors with a thickness of 16 mm or greater and a height of up to 2,400 mm. The distance to the cup is 1,986 mm or less. Installation is achieved through press fitting, and the adjustment is performed on a hexagonal nut using an SW 8 open-ended spanner. The set includes 2 straightening fittings. The cover profile and trim strip feature an anodized finish, while the cover caps have an aluminium effect lacquered finish.
