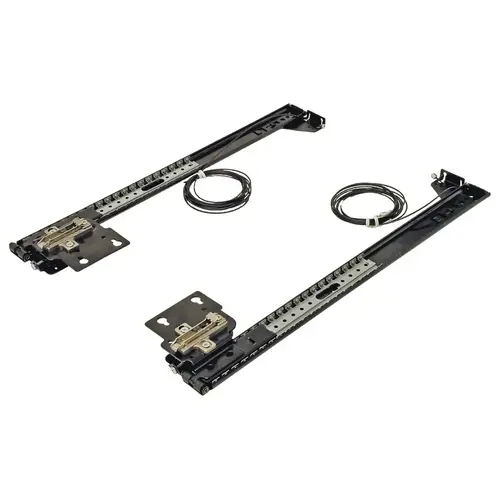

Pocket Door System, Accuride 1432 (Hinges not Included) Empty Empty 813.00 mm 32" 699.00 mm 27 1/2" Vertical use as pivot sliding door fitting and horizontal use as pivot sliding door runner, Length: 813 mm (32") Steel, Black, Zinc-plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 408.24.581 Pocket Door System, Accuride 1432 (Hinges not Included) Empty Empty 813.00 mm 32" 699.00 mm 27 1/2" Vertical use as pivot sliding door fitting and horizontal use as pivot sliding door runner, Length: 813 mm (32") Steel, Black, Zinc-plated

Item #: 408.24.581 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$150.68

/each
SAVE UP TO 15.07
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Pocket width: 51 64 mm (2" 2 1/2") depending on door thickness
  • For swivelling up and sliding in flaps, e.g. in media furniture
  • No obstruction caused by open flap or open hinged door
  • Excellent running properties provided by synchronised runners
  • For doors 13/16" or thicker, please order the optional 40 mm hinge kit
  • For doors 36" 78" tall, see below for additional hinges required

Length

32"

Installation

Vertically mounted concealed doors

For Door Height

Up to 78" (for doors 36 - 78" tall), addtional hinges required

For Door Thickness

19 – 32 mm

For Door Width

Up to 26"

For door material

wood

Dim. B

Empty

Retraction distance max.

699.00 mm

Supplied with

Slide mounting hardware kit Mounting instructions

For door thickness max.

1 1/4" for doors 13/16" or thicker, please order the optional 40 mm hinge kit

Dim. A

Empty

For door weight

≤34 kg

Order reference

Hinge carrier strip set and door fixing set are not supplied. Please order separately.

Version

Hinge carrier strip set can be shortened, with cable system for synchronous running of top and bottom runners

Area of application

For pivot sliding doors

Installation length

813.00 mm

Material/finish

Steel, Black, Zinc-plated

Travel

27 1/2"

Load bearing capacity

75 lbs.

For door thickness min.

3/4" for doors 13/16" or thicker, please order the optional 40 mm hinge kit

Number of Doors

1.00

Max Door Weight

75.00 lb

RequiredProducts

true

Product Overview
Pocket Door System, Accuride 1432 (Hinges not Included) Empty Empty 813.00 mm 32" 699.00 mm 27 1/2" Vertical use as pivot sliding door fitting and horizontal use as pivot sliding door runner, Length: 813 mm (32")
