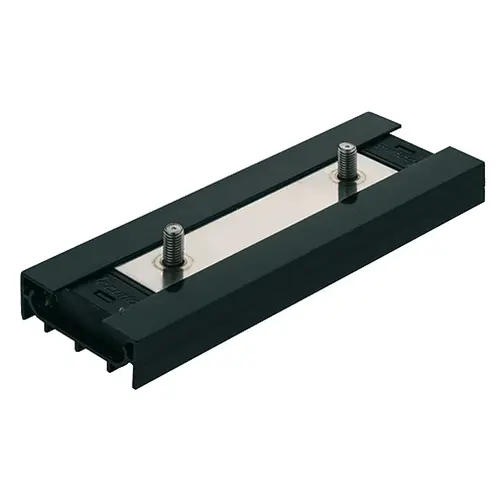

Hafele 421.59.801Click To Copy Carriage, Accuride 115RC Linear Motion Track System, 265 Weight Capacity Stainless steel balls Stainless steel; Accuride SS0115-CASSRC
Item #: 421.59.801 by Hafele
See reviewsSee reviews
In Stock
$80.17
/eachSAVE UP TO 8.02
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 74 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Linear Motion Track System is a unique movement solution consisting of lightweight aluminum tracks and re-circulating ball carriages which provide guidance, movement and positioning for screens, panels, partitions or other components in industrial, commercial and institutional applications.Weight capacity: Up to 265 pounds
- • Track available in two lengths: 1.2 m (47") and 2.4 m (94")
- • Corrosion-resistant track may be cut down to the desired length or butted together to extend to any length
- • Re-circulating ball carriages in two options:- Stainless steel ball bearing carriage – provides the greatest load capacity- Polymer ball bearing carriage – grease-free with smooth and quite movement
- • Tracks have drilling marks for both the fixing holes and end stops
Height
18.3 mm
Material
Stainless Steel
Length
111 mm
Width
40 mm
Thread
M5
Installation
For screw fixing
Suitable For
Accuride 0115RC linear runners
Bearing
Stainless steel balls
Area of application
For sliding objects horizontally (cabinets, claddings, ...)
Load bearing capacity
265 lbs
Installation reference
Supplied in a plastic sleeve as balls are loose in the ball carriage. To prevent the balls from falling out when installing the ball carriage, press the plastic sleeve against the aluminium track, then carefully slide the ball carriage into the aluminium track. Then fit the end stops.
