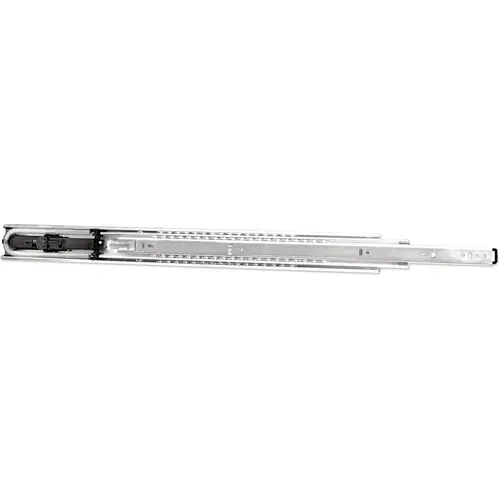

Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 175 lbs Weight Capacity 23" 22" D Pack; 22"; Model C3634-C22ECD Zinc-plated Pair

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 422.05.106 Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 175 lbs Weight Capacity 23" 22" D Pack; 22"; Model C3634-C22ECD Zinc-plated Pair

Item #: 422.05.106 by Hafele

See reviewsSee reviews
In Stock

$154.84

/pair
SAVE UP TO 15.48

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Easy-close feature brings drawers to a smooth, gentle close. This mechanism is a more robust design intended for wider drawers and heavier loads up to 175 lbs.
  • Out stop silenced for quiet operation.
  • 1” over travel for full access to drawer contents
  • Accommodates drawers up to 42” wide to expand potential applications
  • .78” cross-section width
  • Lever disconnect allows for easier drawer removal and reinsertion
  • Outer member hole pattern matches models 3832/3834. The same hole configuration and fastener type are used whether slides are going into a 1/2” or 3/4” side space.
  • Slides are unhanded, which also helps speed and ease of installation
  • RoHS compliant
  • Side space: .78 + .000/-.02 [19.8 mm +0/-.5]
  • Recommended Drawer Size: 1 9/16" (39.69 mm) less than the cabinet opening
  • Disconnect: Handed lever disconnect
  • Easy-close feature brings drawers to a smooth, gentle close
  • 14” is full travel

Height

10 3/8"

Material

Steel

Width

0.78"

Installation

Side or flat mount

Bearing

Ball Bearing

Extension Length

23"

Removing the running track

with release lever

Order reference

D Pack - Polybag includes one pair of slides with moutning screws. P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.

Installation length

22"

Load bearing capacity

Per pair: 175 lbs

Dimention (W x H)

53.1 mm x 19.8 mm

Color/Finish

Zinc-plated

Mounting

Side or flat mount

Product Overview
Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 175 lbs Weight Capacity 23" 22" D Pack; 22"; Model C3634-C22ECD
