Features
- Constructed from steel with a zinc plated finish, providing a functional component for drawer slide systems.
- Designed for a 21" drawer length and requires a minimum installation depth of 22-3/4" for proper fitment.
- Features a face frame undermount installation type, suitable for standard cabinet drawer configurations.
- Equipped with a soft close fluid damped mechanism for controlled and quiet drawer closing operation.
- Supports a 75 lbs load bearing capacity, suitable for standard storage drawer requirements.
- Includes a front locking device with a 3/32" height adjustment facility for precise drawer alignment.
- Self latching front locking devices feature release levers, allowing for simple drawer removal and maintenance.
Installation
Face Frame Undermount
Color/Finish
Zinc Plated
Comfort functions opening/closing
Soft close fluid damped
Load bearing capacity
75 lbs
Model series
Grass Maxcess
Mounting
Face Frame Undermount
Material
Steel
Model
7513-16/545/533
Drawer length
21"
Installation depth min.
22 3/4"
Adjustment facility
Height adjustment + 2.5 mm
Comfort function type
Soft close fluid damped
RequiredProducts
true
Comfort functions open close drawer runners
Soft close fluid damped
ArticleType
NORMAL
Installation depth min inches lang dep
22 3/4"
Drawer length sl cs inch lang dep
21"
Adjustment facility multi-line text lang dep
Height adjustment + 2.5 mm
Series of model
Grass Maxcess
Load bearing capacity pound
75 lbs
Colour finish refinement
Zinc plated
Product Overview

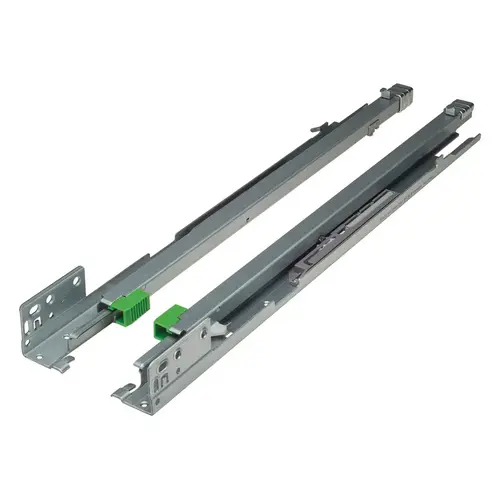

The Grass Maxcess Undermount Slide is a drawer slide system designed for face frame undermount installations. Constructed from steel with a zinc plated finish, this slide provides a 75 lbs load bearing capacity. It features a soft close fluid damped mechanism for controlled drawer closing. The slide is designed for a 21" drawer length and requires a minimum installation depth of 22-3/4". The front locking device includes a height adjustment facility of 3/32". This slide is part of the Grass Maxcess series and is suitable for various drawer applications. The self latching front locking devices are equipped with release levers for drawer removal. This product meets or exceeds ANSI/BHMA Grade 1 testing requirements for performance and reliability. It is intended for use in cabinetry where full access to the drawer interior is required. The slide mechanism operates with a fluid damped soft close function to manage the closing motion of the drawer. The steel construction and zinc plated finish provide a standard appearance for interior cabinet hardware. The installation process utilizes the face frame undermount method, ensuring compatibility with standard face frame cabinet designs.
