Waste Bin Pull-Out, KV Wood Frame, Side Mount, Single, Depth is 23 3/16" 33 l 35 qt. 445 mm 368 mm 17 1/2" TSC15-1-35PT 14 1/2" Frosted nickel, capacity: 35 qt. Birch veneered plywood/Steel Bin: Plastic

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

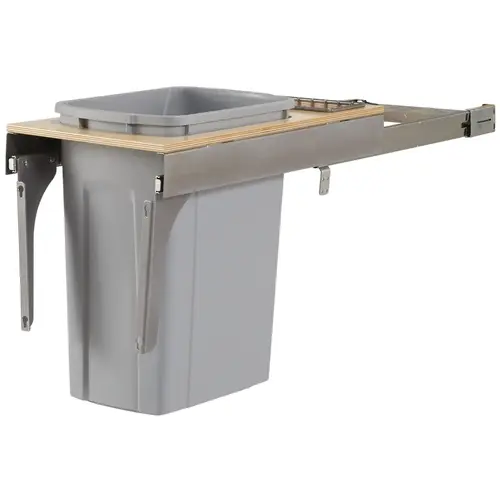

Hafele 503.11.535 Waste Bin Pull-Out, KV Wood Frame, Side Mount, Single, Depth is 23 3/16" 33 l 35 qt. 445 mm 368 mm 17 1/2" TSC15-1-35PT 14 1/2" Frosted nickel, capacity: 35 qt. Birch veneered plywood/Steel Bin: Plastic

Item #: 503.11.535 by Hafele

See reviewsSee reviews

$348.84

/each
SAVE UP TO 34.88

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Door-mount brackets include six-way adjustability for precise door alignment and easy installation
  • If using lid, add 3/4" to height (not applicable for 50 qts bins)

Installation

Side panel-mounted Unique KV Face Frame Adapter Mounting Hardware accommodates 1 3/4" face frame cabinets by allowing for installation in openings 1/2" smaller than standard sizes (excluding 503.11.756 and 503.11.556)

Height

17 1/2"

For internal cabinet depth

≥589 mm

Version

Soft & Silent

For internal cabinet width

368 mm

Material/finish

Birch veneered plywood/Steel Bin: Plastic

Width

14 1/2"

Number of Bins

1

Type of pull out

Heavy-duty, full-extension, overtravel ball bearing slides

Load bearing capacity

80 lbs

Depth

13"

Bin

33 l

Mounting

Side panel-mounted Unique KV Face Frame Adapter Mounting Hardware accommodates 1 3/4" face frame cabinets by allowing for installation in openings 1/2" smaller than standard sizes (excluding 503.11.756 and 503.11.556)

Suitable For

Soft & Silent

Model

TSC15-1-35PT

Capacity

35 Qt.

For internal cabinet height

445 mm

Order reference

Please order optional lids separately

Color/Finish

Frosted nickel

Product Overview
Waste Bin Pull-Out, KV Wood Frame, Side Mount, Single, Depth is 23 3/16" 33 l 35 qt. 445 mm 368 mm 17 1/2" TSC15-1-35PT 14 1/2" Frosted nickel, capacity: 35 qt.
