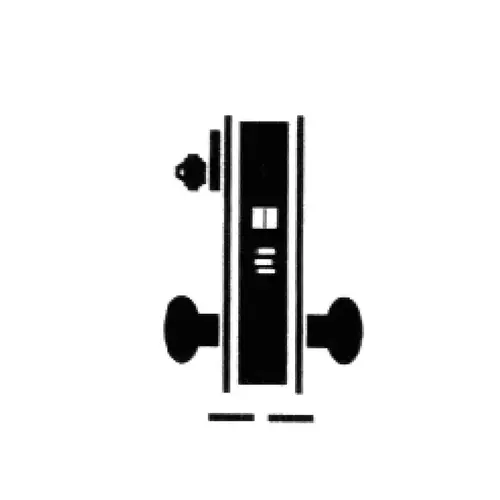

Hafele 911.79.903 Mortise Grade 1 Extra Heavy Duty Lockset, Keyed without Deadbolt Storeroom function
Item #: 911.79.903 by Hafele
See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Preparation: Conforms to ANSI A117.1
- Beveled doors: Self-adjusting tabs on case
- Deadbolt: Stainless Steel, 1” (25 mm) throw
- Latchbolt: Stainless Steel, 3/4” (19 mm) throw with anti-friction tongue
- Deadlocking: Stainless Steel, non-handed
- Through-bolts: Through-bolted trim aligns with mortise case lock
- Stop works: Incorporated into thumbturn
- Strike: 1 1/4” x 4 7/8” (32 x 124 mm), curved lip, square corner, extended lip strikes available
- Spindles: Break-away under excessive torque, preventing forced entry or lock damage
- Cylinder: 6 pin cylinder standard, with 2 keys, “C” keyway
- IC core: Interchangeable core is available
- Cam: All cylinder functions use standard butterfly style cam
- Cylinder collar: Compression ring and collar supplied standard
- Fasteners: Concealed under the rose or escutcheon
- Certifications: ANSI/BHMA A156.13 Series 1000 Grade 1 Operational and Security ADA Compliant ANSI A117.1 Accessibility Code; cUL/UL Listed up to 3 hours UL10C Positive Pressure Rated; UL10B Neutral Pressure Rated
Dimensions
Width x Height x Thickness: 1 3/4 x 7 15/16 x 7/16"; Case: 4 5/16 x 6 x 1"
Backset Size
2 3/4" only
For Door Width
1 3/4", specify if alternate door thickness is required
Product Overview
Mortise Grade 1 Extra Heavy Duty Lockset, Keyed without Deadbolt Storeroom function
