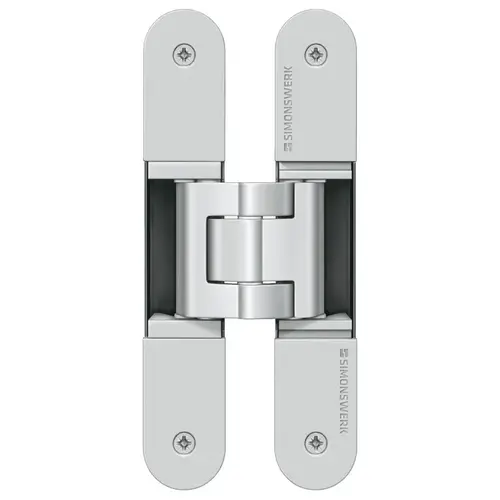

Hafele 924.17.104 Concealed Hinge, TECTUS TE 340 3D 3D adjustable, size 160 mm, Stainless steel look Stainless steel colored, powder coated
Item #: 924.17.104 by Hafele
Brand: Hafele
UPC #: 4000934729851
See reviewsSee reviews
In Stock
$226.25
12,552.25 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 21 units available
Color/finish: Stainless steel colored, powder coated
Black, matt, powder coated
Brass colored, satin-finish, powder coated
Bronze colored, metallic, powder coated
Bronze colored, powder coated
Chrome colored, satin-finish, powder coated
Nickel colored, polished, powder coated
Nickel colored, satin-finish, powder coated
polished, powder coated brass plated
Stainless steel colored, powder coated
Umber, rustic, powder coated
White, powder coated
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Mounting
For DIN left and DIN right hand use
Color/Finish
Stainless steel colored, powder coated
Router bit diameter
15/16"; Guide: 1 3/16"
Door weight max.
176 lbs
Area of application
Used in door frames made out of hollow metal or wood for flush doors
Door thickness min.
1 1/2"
Adjustment facility
Continuous 3-dimensional, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Model series
TE 340 3D
For frame type
Metal frame, Aluminum frame, For wooden frame
Max. door weight for 2 hinges
80 kg
Standard
Certified in compliance with EN 1935:2002
Bearing Type
Friction bearing, maintenance-free
Opening Angle
180 °
Door Thickness
≥38 mm
Model
TE 340 3D
Material
Aluminum, Steel
Grade
3|7|4|1|1|3|0|11
Mounting Type
DIN left/right
Color Finish
Stainless steel colored, Powder coated
Classification key en 1154
3|7|4|1|1|4|0|11
Door weight max pound
176 lbs
ArticleType
NORMAL
Bearing type door hinges list
Friction bearing, maintenance-free
Adjustment facility formula
Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Router bit diameter inch lang dep
15/16"; Guide: 1 3/16"
For wing type
metal door|Wooden door leaf
Door thickness min inch lang dep
1 1/2"
Base material extended multi selection
Steel, Aluminum
Series of model
TE 340 3D
Door weight max for 2 hinges
80 kg
Standard formula
Certified in compliance with EN 1935:2002
Product Overview
Concealed Hinge, TECTUS TE 340 3D 3D adjustable, size 160 mm, Stainless steel look
Optional Accessories: P-00863028;P-00862990;P-00863130;924.17.198
