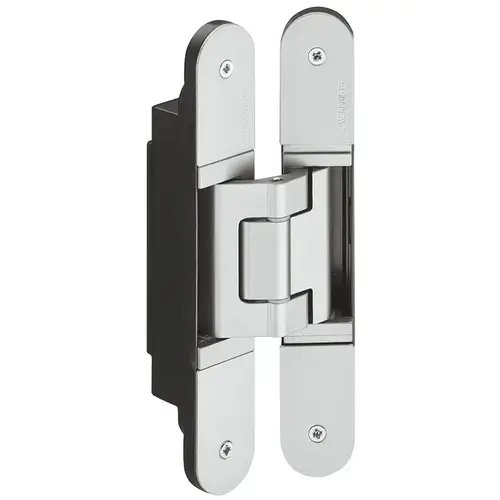

Hafele 924.17.223 Concealed Hinge, TECTUS TE 540 3D 124 3D adjustable, size 200 mm, Satin chorme look Chrome colored, satin-finish, powder coated
Item #: 924.17.223 by Hafele
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Used in door frames made out of hollow metal or wood in flush interior doors
- Maintenance-free slide bearings
- Suitable for left and right hand applications
- UL listed for 20 minute rated fire doors (Maximum door size: 4’ x 8’ for a single door, 8’ 8’ for a pair of doors)
Grade
4|7|6|1|1|3|1|13
Material
Aluminum, Steel
Model
124
Door Thickness
≥40 mm
Opening Angle
180 °
Flange Shape
Standard
Certified in compliance with EN 1935:2002
Max. door weight for 2 hinges
120 kg
For frame type
Steel frame, Wooden/lining frame , Aluminum frame
Model series
TE 540 3D
Thrust ring diameter
30 mm
Adjustment facility
3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Area of application
Used in door frames made out of hollow metal or wood for flush doors Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
Flange height
Flange width
Door weight max.
264 lbs
Router bit diameter
15/16"; Guide: 1 3/16"
For door thickness min.
1 9/16"
Color/Finish
Chrome colored, satin-finish, powder coated
Mounting
For DIN left and DIN right hand use
Product Overview
Concealed Hinge, TECTUS TE 540 3D 124 3D adjustable, size 200 mm, Satin chorme look
