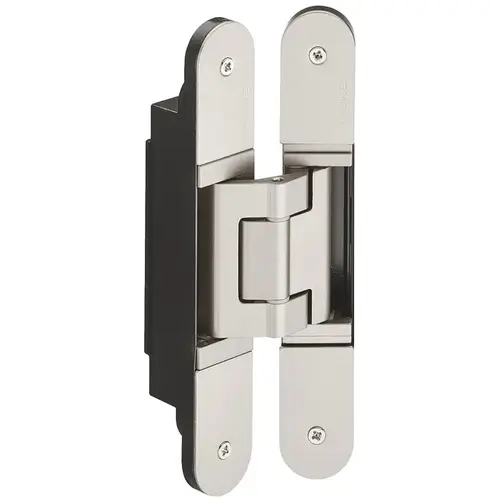

Hafele 924.17.224 Concealed Hinge, TECTUS TE 540 3D TE 540 3D 3D adjustable, size 200 mm, Satin nickel look Nickel colored, satin-finish, powder coated
Item #: 924.17.224 by Hafele
Brand: Hafele
UPC #: 4015643768121
See reviewsSee reviews
In Stock
$300.38
389.82 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 98 units available
Color/Finish: Nickel colored, satin-finish, powder coated
Black, RAL 9005, matt, powder coated
Traffic white, RAL 9016, powder coated
Brass colored, polished, powder coated
Brass colored, satin-finish, powder coated
Bronze colored, Lightened, used look
Bronze colored, metallic, powder coated
Chrome colored, satin-finish, powder coated
Nickel colored, polished, powder coated
Nickel colored, satin-finish, powder coated
oil rubbed dark bronze
Powder Coated
Stainless steel effect, powder coated
Umber, rustic, powder coated
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Used in door frames made out of hollow metal or wood in flush interior doors
- Maintenance-free slide bearings
- Suitable for left and right hand applications
- UL listed for 20 minute rated fire doors (Maximum door size: 4’ x 8’ for a single door, 8’ 8’ for a pair of doors)
Grade
4|7|6|1|1|3|1|13
Material
Aluminum, Steel
Model
TE 540 3D
Door Thickness
≥40 mm
Opening Angle
180 °
Flange Shape
Rounded
Standard
Certified in compliance with EN 1935:2002
Max. door weight for 2 hinges
120 kg
For frame type
Steel frame, Wooden/lining frame , Aluminum frame
Model series
TE 540 3D
Thrust ring diameter
30 mm
Adjustment facility
3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Area of application
Used in door frames made out of hollow metal or wood for flush doors Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
Flange height
200 mm
Flange width
32 mm
Door weight max.
264 lbs
Router bit diameter
15/16"; Guide: 1 3/16"
For door thickness min.
1 9/16"
Color/Finish
Nickel colored, satin-finish, powder coated
Mounting
For DIN left and DIN right hand use
Mounting Type
For DIN left and DIN right hand use
Color Finish
Nickel colored, satin-finish, Powder coated
Classification key en 1154
4|7|6|1|1|4|1|13
Door weight max pound
264 lbs
ArticleType
NORMAL
Flange width formula
32 mm
Collar ring diameter
30 mm
For door thickness min inch lang dep
1 9/16"
Adjustment facility formula
Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Router bit diameter inch lang dep
15/16"; Guide: 1 3/16"
Base material extended multi selection
Steel, Aluminum
Series of model
TE 540 3D
Door weight max for 2 hinges
120 kg
Flange height formula
200 mm
Standard formula
Certified in compliance with EN 1935:2002
Product Overview
Concealed Hinge, TECTUS TE 540 3D TE 540 3D 3D adjustable, size 200 mm, Satin nickel look
Optional Accessories: P-00863028;P-00862990;P-00863130
