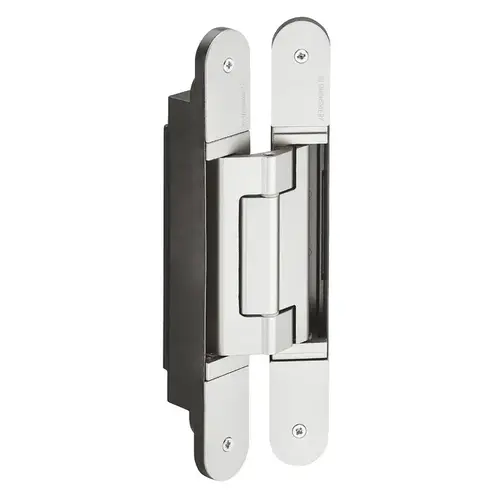

Concealed Hinge, TECTUS TE 640 3D 126 concealed, 3D adjustable, size 240 mm, Stainless steel look Stainless steel effect, powder coated

Roll over image to zoom in

Hafele 924.17.425Click To Copy Concealed Hinge, TECTUS TE 640 3D 126 concealed, 3D adjustable, size 240 mm, Stainless steel look Stainless steel effect, powder coated

Item #: 924.17.425 by Hafele

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$414.72

/each
SAVE UP TO 41.47

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Grade

4|7|6|1|1|3|1|14

Material

Aluminum, Steel

Model

126

Door Thickness

≥40 mm

Opening Angle

180 °

Flange Shape

Rounded

Standard

Certified in compliance with EN 1935:2002

Max. door weight for 2 hinges

200 kg

For frame type

Steel frame, Wooden frame, Aluminum frame

Model series

TECTUS TE 640 3D

Thrust ring diameter

30 mm

Adjustment facility

3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

Door thickness min.

1 9/16"

Version

Maintenance-free slide bearings

Area of application

Used in door frames made out of hollow metal or wood for flush interior doors. UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors

Flange height

240 mm

Flange width

32 mm

Door weight max.

440 lbs

Router bit diameter

Bit: 15/16"#Guide: 1 3/16"

Color/Finish

Stainless steel effect, powder coated

Mounting

For DIN left and DIN right hand use

Product Overview
Concealed Hinge, TECTUS TE 640 3D 126 concealed, 3D adjustable, size 240 mm, Stainless steel look
