Hafele 924.18.916 Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Rustic umber Umber, rustic, powder coated

Item #: 924.18.916 by Hafele

See reviewsSee reviews
In Stock

$166.80

/each
SAVE UP TO 16.68

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote
Custom Configuration

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Grade

2|7|2|0|1|3|0|7

Material

Aluminum, Steel

Door Thickness

≥25 mm

Opening Angle

180.00 °

Bearing Type

Friction bearing, maintenance-free

Flange Shape

rounded

Standard

Certified in compliance with EN 1935:2002

Max. door weight for 2 hinges

60.00 kg

For frame type

Steel frame, Wooden frame, Aluminium frame

Thrust ring diameter

30.00 mm

Adjustment facility

3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1.5 mm

Door thickness min.

1"

Area of application

Used in door frames made out of hollow metal or wood for flush doors

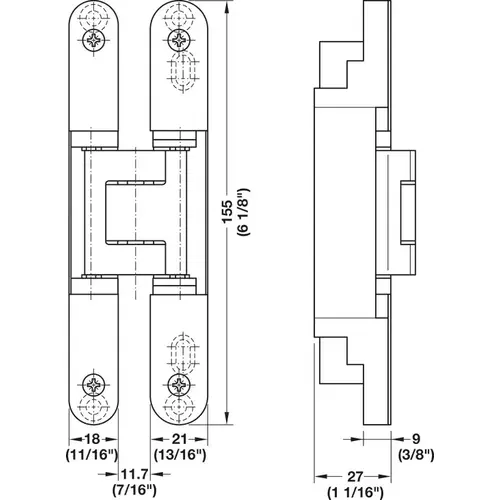

Flange height

155 mm

Flange width

21 mm / 18 mm

Door weight max.

132 lbs

Router bit diameter

5/8"; Guide: 1 3/16"

Color/Finish

Umber, rustic, powder coated

Mounting

For DIN left and DIN right hand use

Product Overview
Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Rustic umber
