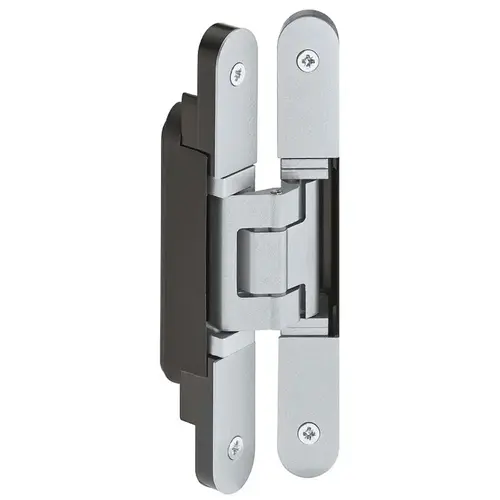

Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Satin chrome look (F1) Silver colored, powder coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 924.18.921 Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Satin chrome look (F1) Silver colored, powder coated

Item #: 924.18.921 by Hafele

See reviewsSee reviews
In Stock

$133.34

/each
SAVE UP TO 13.33

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote
Custom Configuration

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Mounting

For DIN left and DIN right hand use

Color/Finish

Silver colored, powder coated

Router bit diameter

5/8"; Guide: 1 3/16"

Door weight max.

132 lbs

Flange width

21 mm / 18 mm

Flange height

155 mm

Area of application

Used in door frames made out of hollow metal or wood for flush doors

Door thickness min.

1"

Adjustment facility

3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1.5 mm

Thrust ring diameter

30.00 mm

For frame type

Steel frame, Wooden frame, Aluminium frame

Max. door weight for 2 hinges

60.00 kg

Standard

Certified in compliance with EN 1935:2002

Flange Shape

rounded

Bearing Type

Friction bearing, maintenance-free

Opening Angle

180.00 °

Door Thickness

≥25 mm

Material

Aluminum, Steel

Grade

2|7|2|0|1|3|0|7

Product Overview
Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Satin chrome look (F1)
