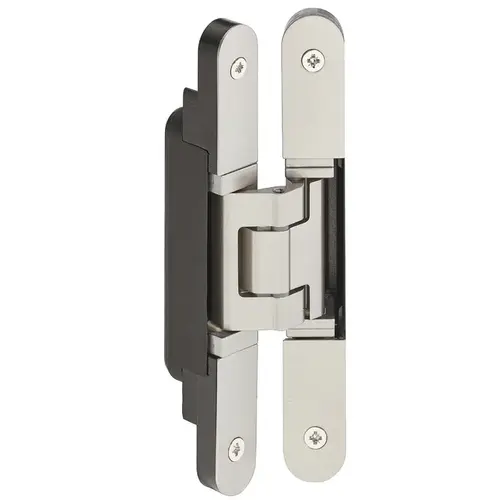

Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Satin nickel look (F2) New silver colored, satin-finish, powder coated nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 924.18.922 Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Satin nickel look (F2) New silver colored, satin-finish, powder coated nickel plated

Item #: 924.18.922 by Hafele

Brand: Hafele

UPC #: 4015643803396

See reviewsSee reviews
See reviews summary
In Stock

$159.02

8,722.71 /each
SAVE UP TO 15.90
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 103 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Mounting

For DIN left and DIN right hand use

Color/Finish

New silver colored, satin-finish, powder coated nickel plated

Router bit diameter

5/8"; Guide: 1 3/16"

Door weight max.

132 lbs

Flange width

21 mm / 18 mm

Flange height

155 mm

Area of application

Used in door frames made out of hollow metal or wood for flush doors

Door thickness min.

1"

Adjustment facility

3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1.5 mm

Thrust ring diameter

30.00 mm

For frame type

Steel frame, Wooden frame, Aluminium frame

Max. door weight for 2 hinges

60.00 kg

Standard

Certified in compliance with EN 1935:2002

Flange Shape

Rounded

Bearing Type

Friction bearing, maintenance-free

Opening Angle

180.00 °

Door Thickness

≥25 mm

Material

Aluminum, Steel

Grade

2|7|2|0|1|3|0|7

ArticleType

NORMAL

Collar ring diameter

30 mm

Door thickness min inch lang dep

1"

Router bit diameter inch lang dep

5/8"; Guide: 1 3/16"

Door weight max for 2 hinges

60 kg

Classification key en 1154

3|7|3|1|1|4|0|10

Mounting Type

For DIN left and DIN right hand use

Color Finish

New silver colored, Powder coated

Flange height formula

155 mm

Door weight max pound

132 lbs

Flange width formula

21 mm / 18 mm

Bearing type door hinges list

Friction bearing, maintenance-free

Adjustment facility formula

Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1.5 mm

Standard formula

Certified in compliance with EN 1935:2002

Base material extended multi selection

Steel, Aluminum

Product Overview
Concealed Hinge, TECTUS TE 240 3D 3D adjustable, size 155 mm, Satin nickel look (F2) Optional Accessories: P-00863028;P-00862990;P-00863130
