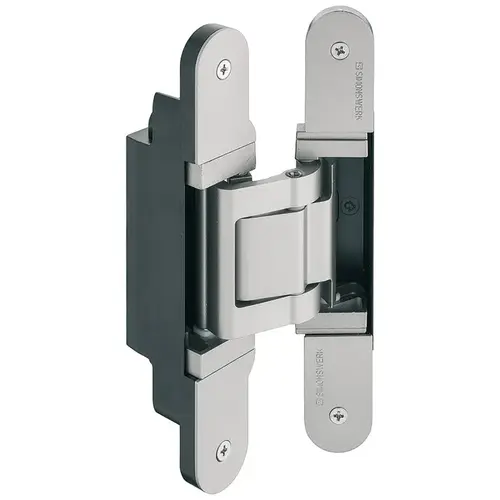

Hafele 924.19.010 Concealed Hinge, TECTUS TE 541 3D FVZ 126 concealed, 3D adjustable, size 185 mm, Stainless steel look Stainless steel colored, Stainless steel effect, powder coated
Item #: 924.19.010 by Hafele
Brand: Hafele
UPC #: 4015643056587
See reviewsSee reviews
In Stock
$448.89
599.68 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 33 units available
Model: 126
038
070
124
125
126
144
156
175
176
Pack: each
each
Color/finish: Stainless steel colored, Stainless steel effect, powder coated
Traffic white, RAL 9016, powder coated
Bronze colored, powder coated light anodized
Chrome colored, satin-finish, powder coated
Dark bronze colored, powder coated
Nickel colored, polished, powder coated
Nickel colored, satin-finish, powder coated
Powder Coated
Stainless steel colored, Stainless steel effect, powder coated
Umber, rustic, powder coated
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Used in door frames made out of hollow metal or wood in flush interior doors
- Suitable for left and right hand applications
Grade
4|7|5|1|1|3|1|12
Material
Aluminum, Steel
Model
126
Door Thickness
≥40 mm
Opening Angle
180 °
Flange Shape
Rounded
Standard
Certified in compliance with EN 1935:2002
Max. door weight for 2 hinges
100 kg
For frame type
Steel frame, Wooden frame, Aluminum frame
Model series
TECTUS
Thrust ring diameter
30 mm
Adjustment facility
3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Door thickness min.
1 9/16"
Area of application
For wooden, steel or aluminium frames for flush doors with recessed frame facing
Flange height
185 mm
Flange width
28 mm
Router bit diameter
15/16"
Color/Finish
Stainless steel colored, Stainless steel effect, powder coated
Mounting
For DIN left and DIN right hand use
Mounting Type
For DIN left and DIN right hand use
Color Finish
Stainless steel colored, stainless steel effect, Powder coated
Classification key en 1154
4|7|5|1|1|4|0|12
ArticleType
NORMAL
Flange width formula
28 mm
Collar ring diameter
30 mm
Adjustment facility formula
Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Router bit diameter inch lang dep
15/16"
Door thickness min inch lang dep
1 9/16"
Base material extended multi selection
Steel, Aluminum
Series of model
TECTUS
Door weight max for 2 hinges
100 kg
Flange height formula
185 mm
Standard formula
Certified in compliance with EN 1935:2002
Product Overview
Concealed Hinge, TECTUS TE 541 3D FVZ 126 concealed, 3D adjustable, size 185 mm, Stainless steel look
Optional Accessories: P-00863028;P-00862990
