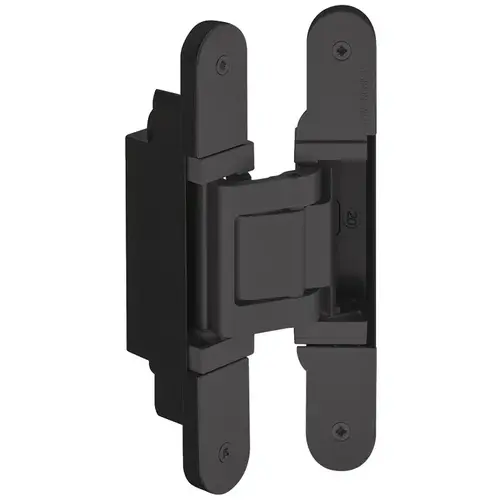

Concealed Hinge, TECTUS TE 541 3D FVZ concealed, 3D adjustable, size 185 mm, Matt deep black (RAL9005) Black, RAL 9005, matte, Powder coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 924.19.012 Concealed Hinge, TECTUS TE 541 3D FVZ concealed, 3D adjustable, size 185 mm, Matt deep black (RAL9005) Black, RAL 9005, matte, Powder coated

Item #: 924.19.012 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$449.36

/each
SAVE UP TO 44.94
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Used in door frames made out of hollow metal or wood in flush interior doors
  • Suitable for left and right hand applications

Grade

4|7|5|1|1|4|0|12

Material

Aluminum, Steel

Model

TE 541 3D FVZ

Door Thickness

≥40 mm

Opening Angle

180.00 °

Direction

Flange Shape

Rounded

Standard

Certified in compliance with EN 1935:2002

Max. door weight for 2 hinges

100.00 kg

For frame type

Steel frame, Wooden frame, Aluminium frame

Model series

TECTUS

Thrust ring diameter

30.00 mm

Adjustment facility

3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

Door thickness min.

1 9/16"

Area of application

For wooden, steel or aluminum frames for flush doors with recessed frame facing

Flange height

185 mm

Flange width

28 mm

Router bit diameter

15/16"

Color/Finish

Black, RAL 9005, matte, Powder coated

Mounting

For DIN left and DIN right hand use

Product Overview
Concealed Hinge, TECTUS TE 541 3D FVZ concealed, 3D adjustable, size 185 mm, Matt deep black (RAL9005)
