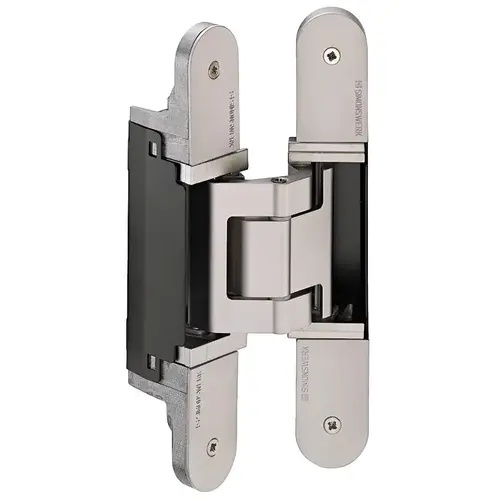

Hafele 924.19.350 Concealed Hinge, TECTUS TE 540 3D A8 168 3D adjustable, size 200 mm, Bronze metallic Bronze colored, metallic, powder coated
Item #: 924.19.350 by Hafele
In Stock $347.83 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Grade
4|7|5|1|1|3|1|12
Material
Aluminum, Steel
Model
168
Door Thickness
≥40 mm
Opening Angle
180 °
Flange Shape
rounded
Standard
Certified in compliance with EN 1935:2002
Max. door weight for 2 hinges
100 kg
For frame type
Steel frame, Wooden frame, Aluminum frame
Model series
TECTUS TE 540 3D A8
Thrust ring diameter
30 mm
Adjustment facility
3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Door thickness min.
1 9/16"
Version
Maintenance-free slide bearings
Area of application
Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16”) thick surface applied panel UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors) Left and right applications
Flange height
200 mm
Flange width
32 mm
Door weight max.
220 lbs
Router bit diameter
Bit: 15/16"#Guide: 1 3/16"
Color/Finish
Bronze colored, metallic, powder coated
Mounting
For DIN left and DIN right hand use
