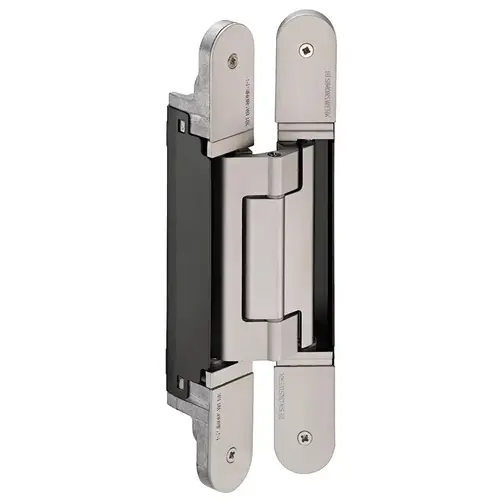

Concealed Hinge, TECTUS TE 640 3D 168 concealed, 3D adjustable, size 240 mm, bronze metallic Bronze colored, metallic, powder coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 924.19.450 Concealed Hinge, TECTUS TE 640 3D 168 concealed, 3D adjustable, size 240 mm, bronze metallic Bronze colored, metallic, powder coated

Item #: 924.19.450 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$502.28

/each
SAVE UP TO 50.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Mounting

For DIN left and DIN right hand use

Color/Finish

Bronze colored, metallic, powder coated

Router bit diameter

Bit: 15/16"#Guide: 1 3/16"

Door weight max.

440 lbs

Flange width

32 mm

Flange height

240 mm

Area of application

Used in door frames made out of hollow metal or wood for flush interior doors. UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors

Version

Maintenance-free slide bearings

Door thickness min.

1 9/16"

Adjustment facility

3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

Thrust ring diameter

30 mm

Model series

TECTUS TE 640 3D

For frame type

Steel frame, Wooden frame, Aluminum frame

Max. door weight for 2 hinges

200 kg

Standard

Certified in compliance with EN 1935:2002

Flange Shape

Rounded

Opening Angle

180 °

Door Thickness

≥40 mm

Model

168

Material

Aluminum, Steel

Grade

4|7|6|1|1|3|1|14

Product Overview
Concealed Hinge, TECTUS TE 640 3D concealed, 3D adjustable, size 240 mm, bronze metallic, SW 168 Optional Accessories: P-00863028;P-00862990
