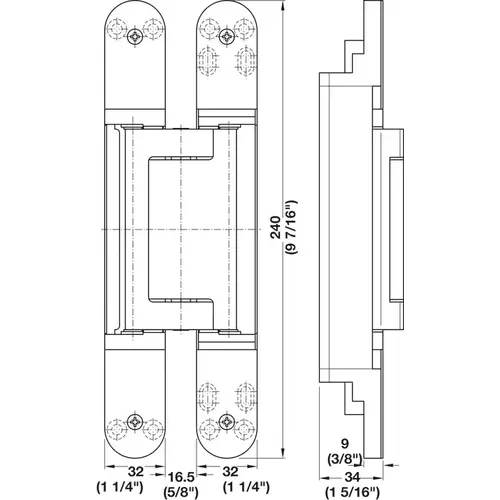

Hafele 924.19.451 Concealed Hinge, TECTUS TE 640 3D 156 concealed, 3D adjustable, size 240 mm, Rustic umber Umber, rustic, powder coated
Item #: 924.19.451 by Hafele
Brand: Hafele
See reviewsSee reviews
Model: 156
030
107
124
125
126
156
168
TE 640 3D
Color/finish: Umber, rustic, powder coated
Black, RAL 9005, matt, powder coated
Brass colored, polished, powder coated
Bronze colored, metallic, powder coated
Chrome colored, satin-finish, powder coated
Nickel colored, polished, powder coated
Nickel colored, satin-finish, powder coated
Stainless steel effect, powder coated
Umber, rustic, powder coated
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Grade
4|7|6|1|1|3|1|14
Material
Aluminum, Steel
Model
156
Door Thickness
≥40 mm
Opening Angle
180 °
Flange Shape
Rounded
Standard
Certified in compliance with EN 1935:2002
Max. door weight for 2 hinges
200 kg
For frame type
Steel frame, Wooden frame, Aluminum frame
Model series
TECTUS TE 640 3D
Thrust ring diameter
30 mm
Adjustment facility
3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Door thickness min.
1 9/16"
Version
Maintenance-free slide bearings
Area of application
Used in door frames made out of hollow metal or wood for flush interior doors. UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors
Flange height
240 mm
Flange width
32 mm
Door weight max.
440 lbs
Router bit diameter
Bit: 15/16"#Guide: 1 3/16"
Color/Finish
Umber, rustic, powder coated
Mounting
For DIN left and DIN right hand use
Mounting Type
For DIN left and DIN right hand use
Color Finish
Umber, rustic, Powder coated
Classification key en 1154
4|7|7|1|1|4|1|14
Door weight max pound
440 lbs
ArticleType
NORMAL
Flange width formula
32 mm
Collar ring diameter
30 mm
Adjustment facility formula
Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Router bit diameter inch lang dep
Bit: 15/16"#Guide: 1 3/16"
Door thickness min inch lang dep
1 9/16"
Base material extended multi selection
Steel, Aluminum
Series of model
TECTUS TE 640 3D
Door weight max for 2 hinges
200 kg
Flange height formula
240 mm
Standard formula
Certified in compliance with EN 1935:2002
Product Overview
Concealed Hinge, TECTUS TE 640 3D concealed, 3D adjustable, size 240 mm, Rustic umber, SW 156
Optional Accessories: P-00863028;P-00862990
