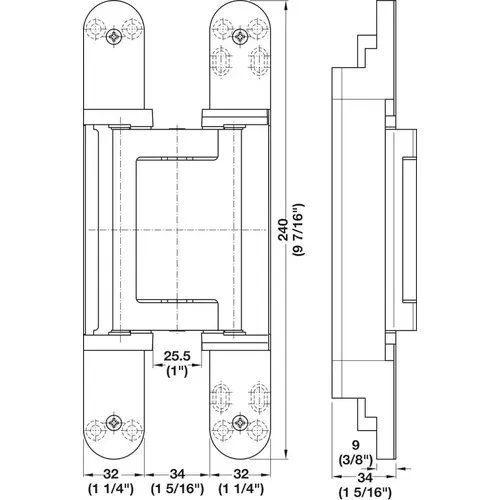

Concealed Hinge, TECTUS TE 640 3D A8 176 concealed, 3D adjustable, size 240 mm, Bronze finish dark Bronze colored, Oiled, dark

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 924.19.552 Concealed Hinge, TECTUS TE 640 3D A8 176 concealed, 3D adjustable, size 240 mm, Bronze finish dark Bronze colored, Oiled, dark

Item #: 924.19.552 by Hafele

See reviewsSee reviews

$595.85

/each
SAVE UP TO 59.59

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote
Custom Configuration

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Grade

4|7|7|1|1|0|1|14

Material

Aluminum, Steel

Model

176

Door Thickness

≥40 mm

Opening Angle

180 °

Flange Shape

rounded

Standard

Certified in compliance with EN 1935:2002

Max. door weight for 2 hinges

160 kg

For frame type

Steel frame, Wooden frame, Aluminum frame

Model series

TECTUS TE 640 3D A8

Thrust ring diameter

30 mm

Adjustment facility

3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

Door thickness min.

1 9/16"

Version

Maintenance-free slide bearings

Area of application

Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16”) thick surface applied panel Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors

Flange height

240 mm

Flange width

32 mm

Door weight max.

352 lbs

Router bit diameter

Bit: 15/16"#Guide: 1 3/16"

Color/Finish

Bronze colored, Oiled, dark

Mounting

For DIN left and DIN right hand use

Product Overview
Concealed Hinge, TECTUS TE 640 3D A8 176 concealed, 3D adjustable, size 240 mm, Bronze finish dark
