Features
Material
Steel
Model
H12
Door Thickness
38 – 45 mm
Opening Angle
180.00 °
For Door Width
≤ 35 7/16"
Max. door weight for 2 hinges
60.00 kg
Model series
H12
Adjustment facility
3DContinuous, Side: 1 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Order reference
Fixing material supplied. Hex key for adjustment supplied. Other finishes available on request.
Area of application
For flush interior wood doors - 3D Adjustable
Door width max.
900.00 mm
Door height max.
2,100.00 mm
Door weight max.
132 lbs with 2 door hinges
Color/Finish
satin-finish, Chrome plated
Product Overview

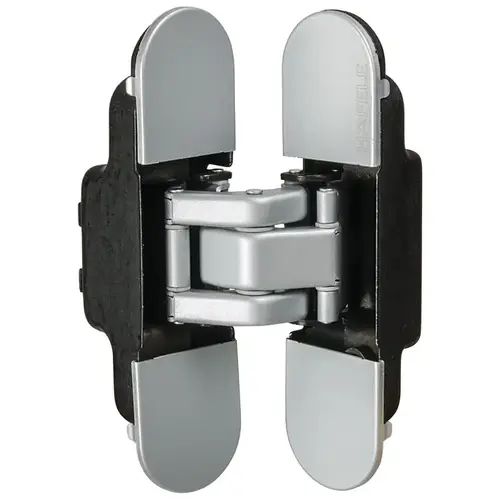

Door Hinge, Atomika 3D adjustable, size 120 mm, Satin chrome
Optional Accessories: P-00863121
