Hafele 941.02.114 Sliding Door Hardware Top Hung System Soft Self Closing Mechanism 120 kg Capacity = 23 5/16"

Item #: 941.02.114 by Hafele

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Version E
  • For 2 bi-parting and bypassing sliding doors, please order 2 sets.

Model

40-P / 80-P / 120-P

Installation

Suspension with screwed on support flange

For Door Width

≥ 23 5/16"

For door material

wood

Number of doors per system max.

2

Soft closing mechanism

with soft and self closing mechanism on one side

Adjustment facility

Height: (3/16") +/-5

For door weight

≤120 kg

Order reference

Please order track, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.

Version

With two Soft Close for both sides

Material/finish

Steel Plastic

Load bearing capacity

88 lbs.

Controller installation options

Ceiling installation, Wall mounting

Number of Doors

1

Running position

Top

Area of application

For 1 and 2 sliding wood doors

RequiredProducts

true

Product Overview

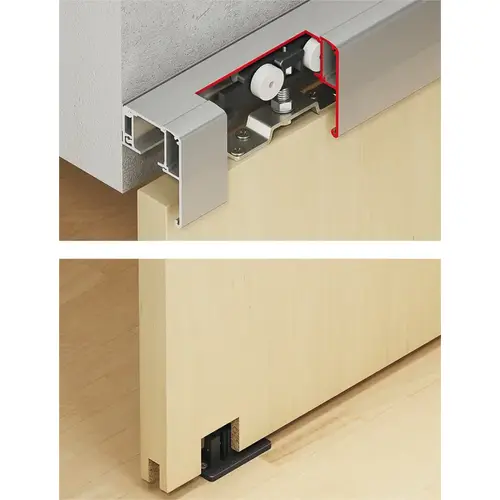

for 1 and 2-leaf wooden sliding doors, ceiling and wall installation, soft and self closing mechanism, height adjustable doors, for door weights up to 40 120 kg (88 265 lbs.), with soft and self closing mechanism on one side, version B, door width 592 mm (23 1/3") Required Products: 940.43.921;940.43.922;940.43.931;940.43.932;940.43.961;940.43.962;940.43.692;940.43.693;940.43.696;940.43.930;941.02.920;941.02.930;941.02.960;941.02.820;941.02.821;941.02.830;941.02.831;941.02.860;941.25.821;941.25.831;941.25.861;941.25.820;941.25.830;941.25.860;941.25.823;941.25.833;941.25.822;941.25.832 Optional Accessories: P-00875195;P-00876484;P-00875993;P-00875515;P-00876479;P-00876408;P-00876528;P-00876527;P-00875197;P-00877405;P-00877408;P-00876698;P-01319634;P-00875930
