Hafele 941.20.009 Sliding Door Hardware, HAWA Junior 120/B, set with track buffer on one side, with wall buffer on one side Top Hung System, With 1 track buffer/1 wall buffer
Item #: 941.20.009 by Hafele
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Installation

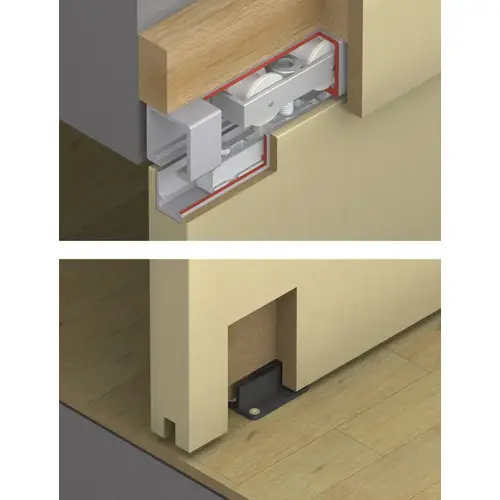

Suspension with recessed support profile
Supplied with
2 running gears 2 support profiles with suspension carriages, M12 2 cover caps 1 track buffer with retaining spring 1 wall buffer 1 clear threshold floor guide 60 mm Accessories
Order reference
Order 2 sets for 2‐leaf sliding doors.
Number of doors per system max.
1 to 2
Number of Doors
1
For door material
wood
Version
with track buffer on one side, with wall buffer on one side
For door thickness min.
1 3/8"
Door processing
for screw fixing
Load bearing capacity
Max: 264 lbs.
Controller installation options
Ceiling installation, Wall mounting
Door weight max.
264 lbs
Suitable For
Minimum installation height
Model
120 B
Standard
Certified in compliance with EN 1527:2013
For Door Width
27 9/16 - 59 1/16"
For door weight
≤120 kg
Adjustment facility
Height adjustment: ±3 mm, Track buffer with adjustable retaining spring
For Door Height
≤4,000 mm
For Door Thickness
35 – 80 mm
Running position
Top
Area of application
For 1 and 2 sliding wood doors
For 1-leaf sliding doors for wall pocket installation
Classification in compliance with EN 1527
-|6|3|-|1|0|-|1|3
Max Door Weight
264.00 lb
RequiredProducts
true
Product Overview
Sliding Door Hardware, HAWA Junior 120/B, set with track buffer on one side, with wall buffer on one side Top Hung System, With 1 track buffer/1 wall buffer
