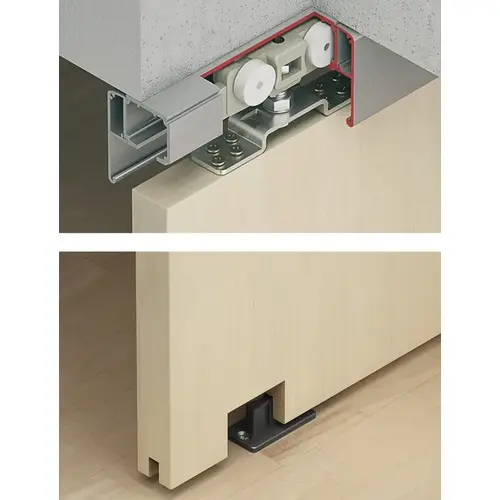

Sliding door fitting, Slido D-Line11 160P Set for 1-leaf wooden sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 160 kg, Version A, without Soft Close

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 941.62.004 Sliding door fitting, Slido D-Line11 160P Set for 1-leaf wooden sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 160 kg, Version A, without Soft Close

Item #: 941.62.004 by Hafele

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Model

160P

Installation

Suspension with screwed on support flange

For door material

wood

Number of doors per system max.

1 to 2

Soft closing mechanism

Adjustment facility

height adjustment

Supplied with

2 running gears 1 floor guide (20) 2 track buffer with retaining spring

For door weight

≤160 kg

Order reference

Order 2 sets for 2-leaf sliding doors. Please order running and guide tracks separately.

Door weight max.

176 lbs.

Load bearing capacity

Per door: ≤ 353 lbs.

Door processing

With recess

Controller installation options

Ceiling installation, Wall mounting

Installation reference

No end cap is available for ceiling installation with a panel on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).

Number of Doors

1

Running position

Top

Area of application

For 1 sliding door without upper track and soft close

RequiredProducts

true

Product Overview
Sliding door fitting, Slido D-Line11 160P Set for 1-leaf wooden sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 160 kg (353 lbs.), Version A, without Soft Close Required Products: 941.62.721;941.62.731;941.62.761;940.42.050;940.42.051;940.42.052 Optional Accessories: P-00875195;P-01499186;P-00875515;P-00876527;P-00875869;P-00876530;P-00876531
