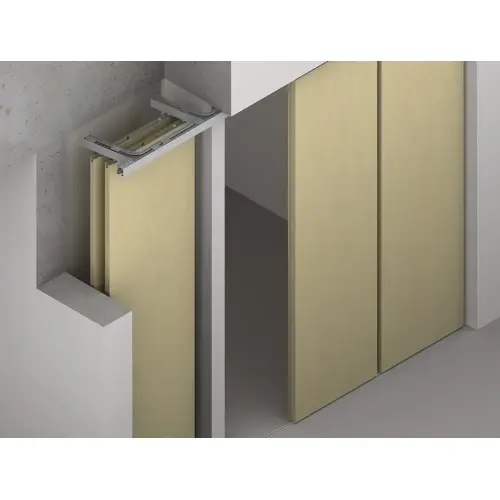

Hafele 943.30.003 Sliding Door Hardware, Hawa Aperto 60/H, set For system with guide track Empty Set for sliding doors, Set for door type D Silver colored, anodized
Item #: 943.30.003 by Hafele
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Modular running track system for room dividers and screensSuspension with support profileHeight adjustable sliding door leavesExtremely light and silent running in curvesA single lock secures the entire installationInstallations without a bottom guide channel are possibleCenter stop with adjustable retention spring catchStandard parking area sets accommodate up to 9 door panelsParking at 90 or pa
Lock Type
Empty
Features
For system with guide track
Running system
Concealed in track
For door thickness min.
1 1/2"
Controller installation options
Ceiling installation
Material/finish
Silver colored, anodized
Door weight max.
130 lbs.
Area of application
Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildings locking of the system with one lock
Version
Door can be optionally stacked parallel or 90° to the running direction in the open position Partial sets for sliding doors, hinged doors and parking areas with guide track, optionally without guide track with low load System flush in closed position light and quiet curve running
For door weight
≤60 kg
For door thickness max.
2"
Supplied with
2 suspension carriages 2 running gears 3 support profiles 3 cover caps 1 clear threshold guide
Adjustment facility
Height adjustment facility: -3 – 3 mm, Vertically: (+/- 1/8") +/- 3 mm
Number of doors per system max.
≤8
For door material
wood
For Door Width
550 – 1,500 mm
For Door Thickness
35 – 50 mm
For Door Height
≤2,600 mm
Set Type
Set for sliding doors, Set for door type D
Suitable For
Flexible room or visual separation, Room-high solutions
Max Door Weight
132.00 lb
RequiredProducts
true
Product Overview
for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm, door type D
Note on door width
Parking area 90 degree: 550 950 mm, parallel parking area: 550 1500 mm
Order reference
Several individual elements must be ordered in order to achieve a functional system with the Aperto
Order reference
Several individual elements must be ordered in order to achieve a functional system with the Aperto
Order reference
Several individual elements must be ordered in order to achieve a functional system with the Aperto
Note on door width
Parking area 90 degree: 550 950 mm, parallel parking area: 550 1500 mm
Order reference
Several individual elements must be ordered in order to achieve a functional system with the Aperto
Order reference
Several individual elements must be ordered in order to achieve a functional system with the Aperto
Order reference
Several individual elements must be ordered in order to achieve a functional system with the Aperto
