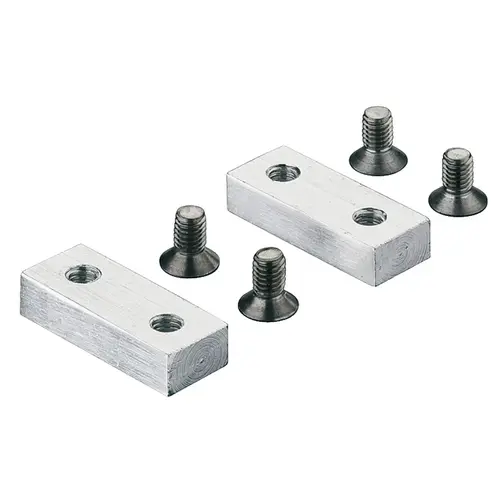

Hafele 421.59.500 End Stop, Accuride 115RC Linear Motion Track System, 265 Weight Capacity Accuride 115RC, Aluminum
Item #: 421.59.500 by Hafele
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Linear Motion Track System is a unique movement solution consisting of lightweight aluminum tracks and re-circulating ball carriages which provide guidance, movement and positioning for screens, panels, partitions or other components in industrial, commercial and institutional applications.Weight capacity: Up to 265 pounds
- • Track available in two lengths: 1.2 m (47") and 2.4 m (94")
- • Corrosion-resistant track may be cut down to the desired length or butted together to extend to any length
- • Re-circulating ball carriages in two options:- Stainless steel ball bearing carriage – provides the greatest load capacity- Polymer ball bearing carriage – grease-free with smooth and quite movement
- • Tracks have drilling marks for both the fixing holes and end stops
Material
Aluminum
Installation
For screw fixing
Suitable For
Accuride 0115RC linear runners
Supplied with
1 End stop 2 Countersunk head screws M4
Area of application
For sliding objects horizontally (cabinets, claddings, ...)
Load bearing capacity
265 lbs
Product Type
End Stop
Dimention (L x W x H)
26 x 10 x 6 mm
RequiredProducts
true
Product Overview
Required Products: 421.59.100;421.59.101;421.59.801;421.59.805
