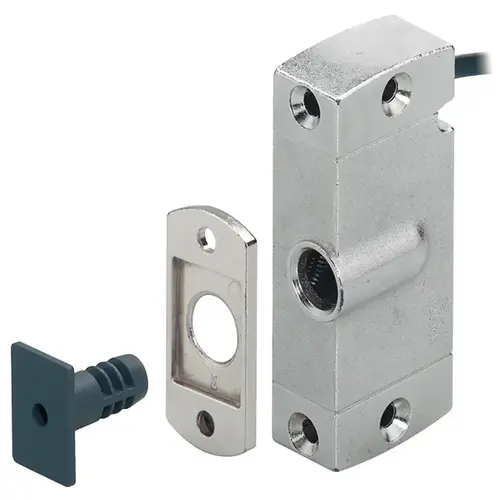

Furniture Lock, EFL 1/1C, Dialock, Mains-Operated Lock with plastic locking bolt, EFL 1 without feedback contact, cable length: 3 m Locking bolt: Grey, Housing and retaining plate: Nickel plated, Lock case and fixing plate: Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 237.56.002 Furniture Lock, EFL 1/1C, Dialock, Mains-Operated Lock with plastic locking bolt, EFL 1 without feedback contact, cable length: 3 m Locking bolt: Grey, Housing and retaining plate: Nickel plated, Lock case and fixing plate: Nickel plated

Item #: 237.56.002 by Hafele

See reviewsSee reviews

$161.46

/each
SAVE UP TO 16.15

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Keyed alike furniture locks:
  • Several EFL 1 furniture locks can be switched parallel (keyed alike) in combination with the CC 140 distributor.Keyed alike/keyed different furniture locks:
  • Several EFL 1 furniture locks can be switched parallel (keyed alike) or individually (keyed different) in combination with the MLA 8 multi-lock adapter.
  • Using the MLA 8 also allows:
  • • Parallel operation of keyed alike and keyed different
  • • Combination with other EFL furniture locks with AMP plug (e.g. EFL 41) or RJ 10 plug (EFL 3)The use of a marking gauge is mandatory for installing the EFL 1 furniture lock.Note max. cable lengths, for more information see MLA 8 multi-lock adapter.A furniture handle (hole distance 32 mm) can be screwed to the backside of the fixing plate.Installation film on CD under Cat. No. 732.29.491. This fil

Product Type

Furniture Lock

Connection

FT 120 furniture terminal: Connection via CC 140 multi-lock adapter, FT 200 furniture terminal: Connection via MLA 8 multi-lock adapter

Color/Finish

Locking bolt: Grey, Housing and retaining plate: Nickel plated, Lock case and fixing plate: Nickel plated

Area of application

Electromechanical lock for indoor use: For hinged doors or flaps in furniture and office equipment

Version

Electromagnetic locking action connection cable with AMP plug locking bolt is held floating for 2D tolerance compensation

Order reference

Please order marking gauge for EFL 1/EFL 1C and macro key card for EFL 1C separately (only possible in combination with the FT 120). Alternatively, a metal locking bolt is available.

Supplied with

1 EFL 1 or EFL 1C furniture lock 1 locking bolt with fixing plate

Article variant

Electromagnetic locking action connection cable with AMP plug locking bolt is held floating for 2D tolerance compensation

Functionality

The lock remains unlocked for 3 seconds via the FT 120/FT 200 (standard), then the door is locked again. If no voltage is present, the furniture lock is locked.

Material

Lock case: Zinc alloy, locking bolt: Plastic, fixing plate: Zinc

Product Overview
Furniture Lock, EFL 1/1C, Dialock, Mains-Operated Lock with plastic locking bolt, EFL 1 without feedback contact, cable length: 3 m
