Door Holder, Electro-Magnetic, Wall Mounted, Model SE120 Aluminum painted (US28)

Roll over image to zoom in

  • Product Features

  • Related Videos

  • Reviews

  • Questions & Answers

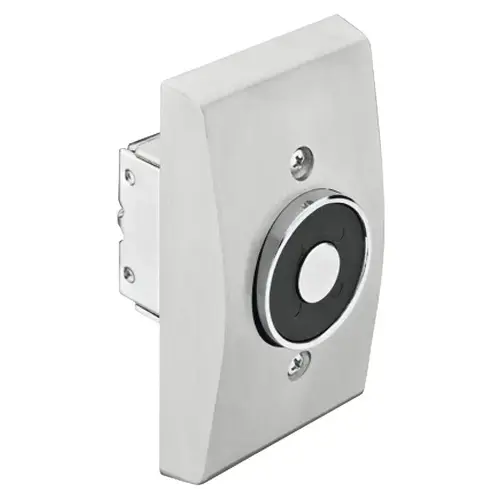

Hafele 912.05.321 Door Holder, Electro-Magnetic, Wall Mounted, Model SE120 Aluminum painted (US28)

Item #: 912.05.321 by Hafele

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Direct current consumption: 30 mA at 24 VDC, 24 VAC, 120 VAC60 mA at 12 VDC
  • Holding power: Approx. 45 lbs (20 kg)
  • Doors will be held open until released by a remote switching device.
  • Custom finishes are available upon request.
  • One holder and armature is required per door leaf.
  • Operating voltage: 12 VDC, 24 VDC, 24 VAC, 120 VAC
  • ANSI/BHMA A156.15, C00011
  • Direct current consumption: 30 mA at 24 VDC, 24 VAC, 120 VAC 60 mA at 12 VDC

Material

Housing: Steel (689) Armature: Zinc die-cast

Model

Model SE120

Installation

Easy wiring via quick insert connector

Supplied with

Fasteners

Order reference

One holder and armature is required per door leaf.

Area of application

Hold open device for normally opened doors in a fire/smoke barrier. Doors will be held open until released by a remote switching device.

Color/Finish

Aluminum painted (US28)
